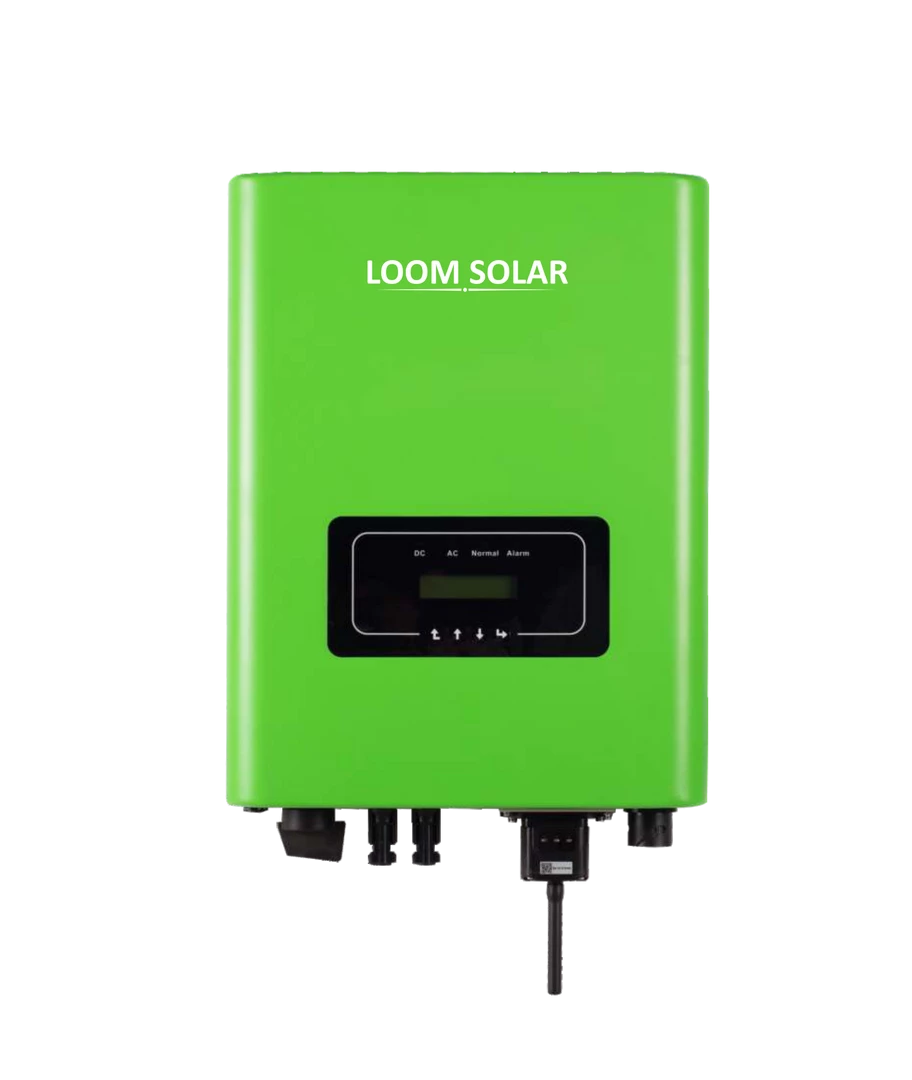

5 Years Warranty Fusion 10 Kw, 3 ø On Grid Solar Inverter

Loom Solar Grid Tied Inverters are powerful inverters that converts direct current (DC) electricity into alternating current (AC), It is also called On grid system which works without battery. The Main purpose of Grid tied inverter is to supply power from Mains supply to home/offices and feed the Generation of solar Power to Mains supply

Grid Tie Inverters are designed to quickly disconnect from the grid if the utility grid goes down. It ensures that in the event of a blackout, the grid-tie inverter will shutdown to prevent the energy it transfers from harming any line workers who are sent to fix the power grid.

Key Features

• On Gird/ Gird Tied inverter for Saving electricity bill by selling access generation of Solar Power to Power distribution Company through Net metering system.

Video

Key Technical

Model Name	Fusion 103
System Rating	10 KW, Three Phase
Maximum Solar Panel Connection (Watts)	12000 Watts
Efficiency	96.80%
Feed-in Phase	Three-phase
Topology	Transformerless
Number of MPPT Controller	2
Noise	< 30dBA
Weight (kg)	15 Kg
Dimensions [L * H * W] mm	330 * 472 * 202

Product Manual: Download product data sheet to know electrical parameters
