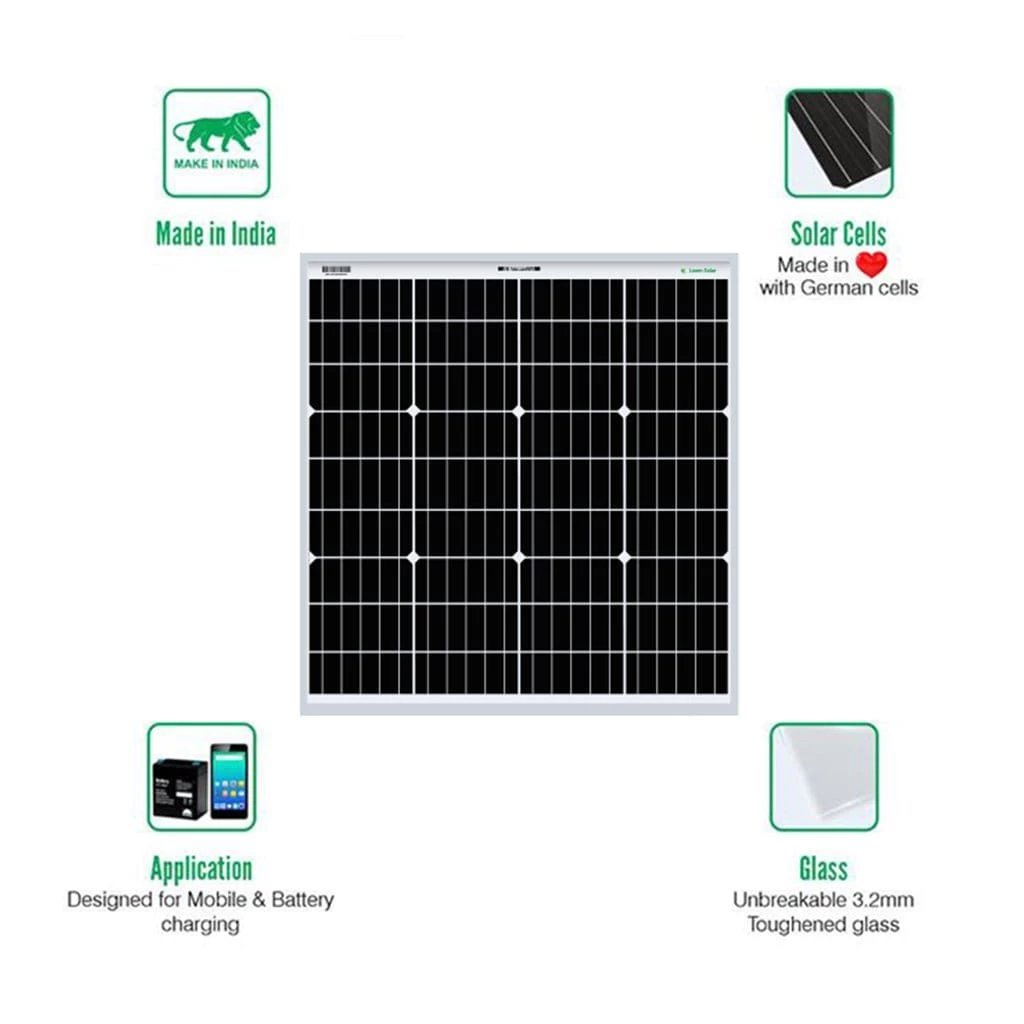

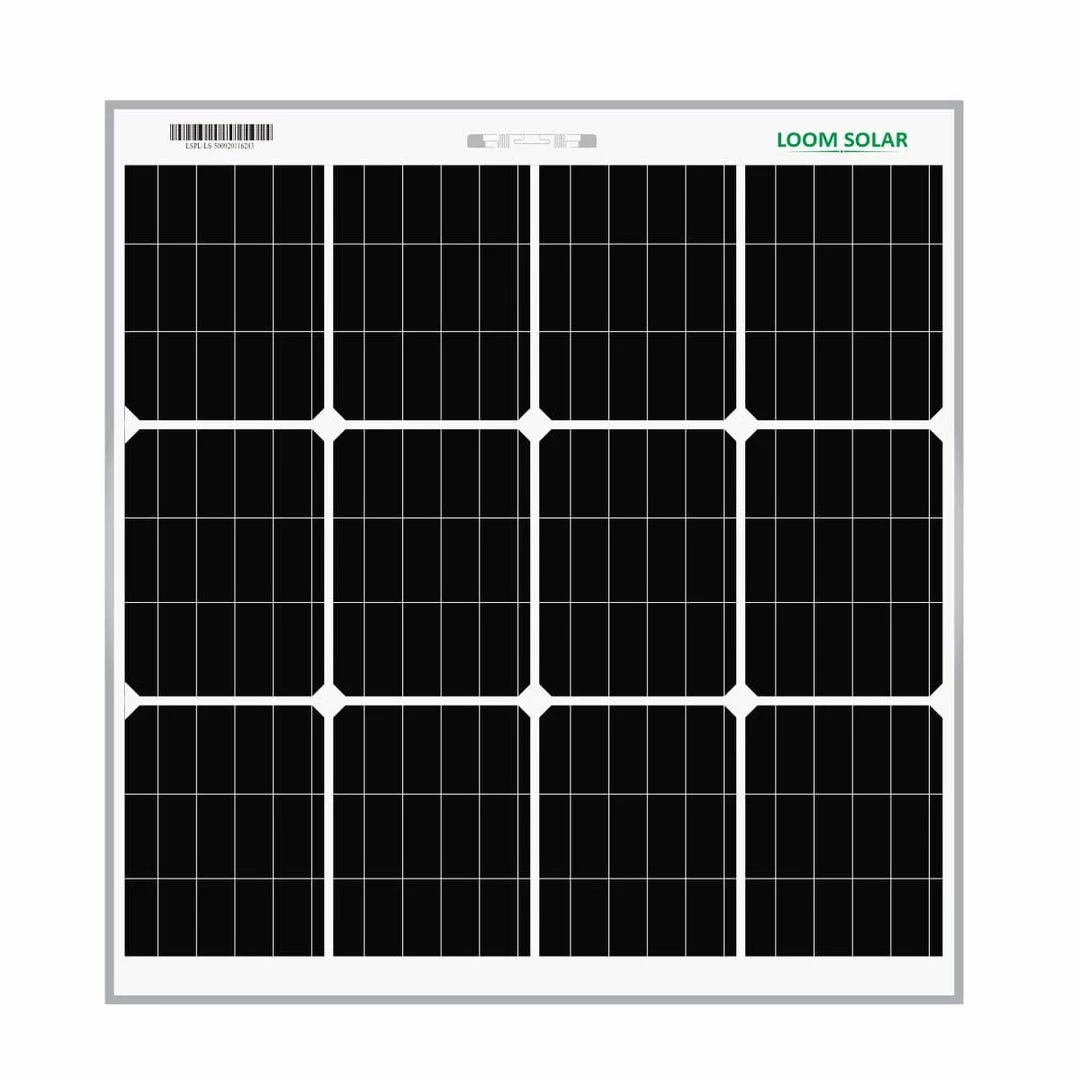

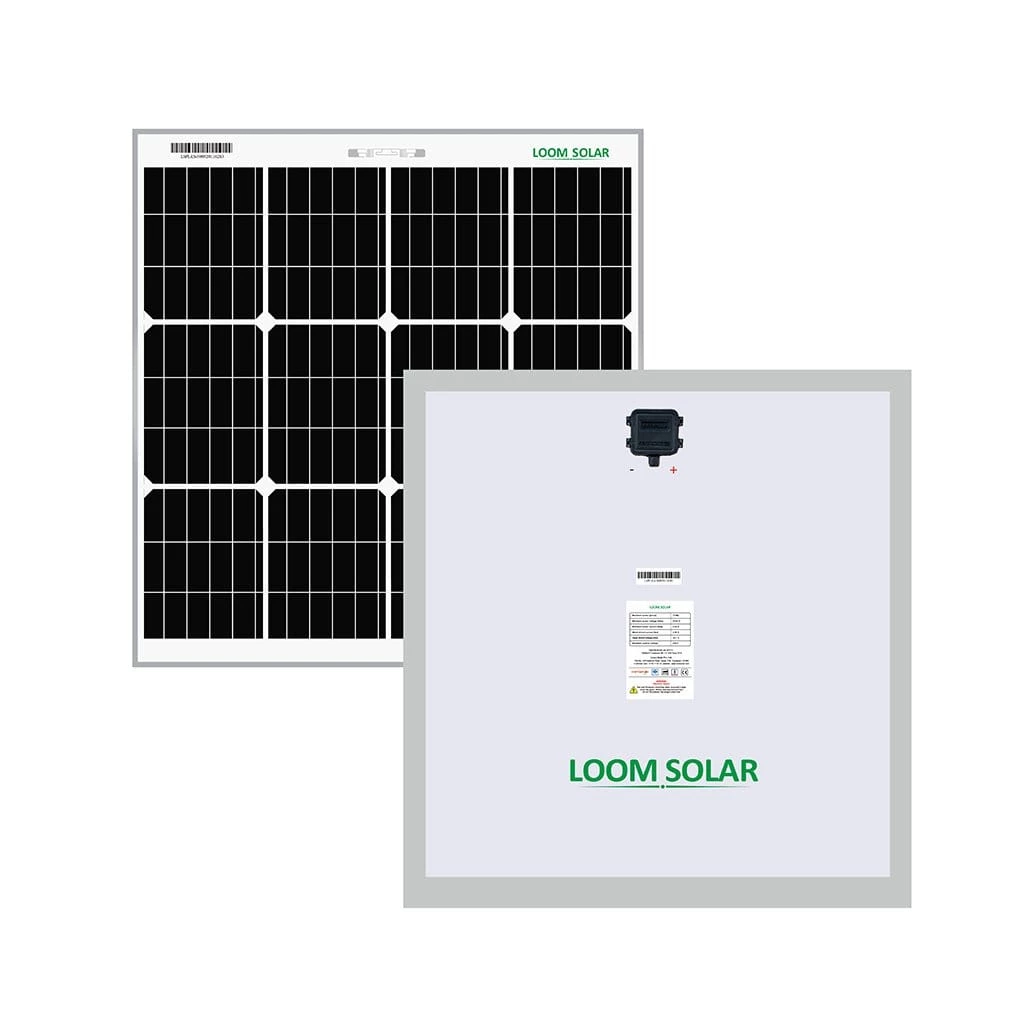

Loom solar 75 watt mono panels are made of A grade mono perk cells and ultra cleared tempered glasses that does not break easily and gives 20-25% higher efficiency even in low light and cloudy weather. Loom solar is only company in india that makes mono panels using perk cells in 12 volt design. The additional feature includes 4 busbars, 36 cells and 25 years performance warranty. IP 67 rated junction box is given with MC4 compatible cable connector for higher module efficiency.
Descriptions
| Brand | Loom Solar |
| Output Power | 75Â Watts |
| Operating Voltage | 12Â Volt |
| Panel Technology | Mono Perc |
| Manufacturer warranty | 10Â year on Manufacturing defects |
| Performance Warranty | 25 Years |
| Additional Features | A+ Grade, anti PID Mono cells |
| Cell Conversion efficiency > 19% | |
| ultra cleared tempered glasses |
Â

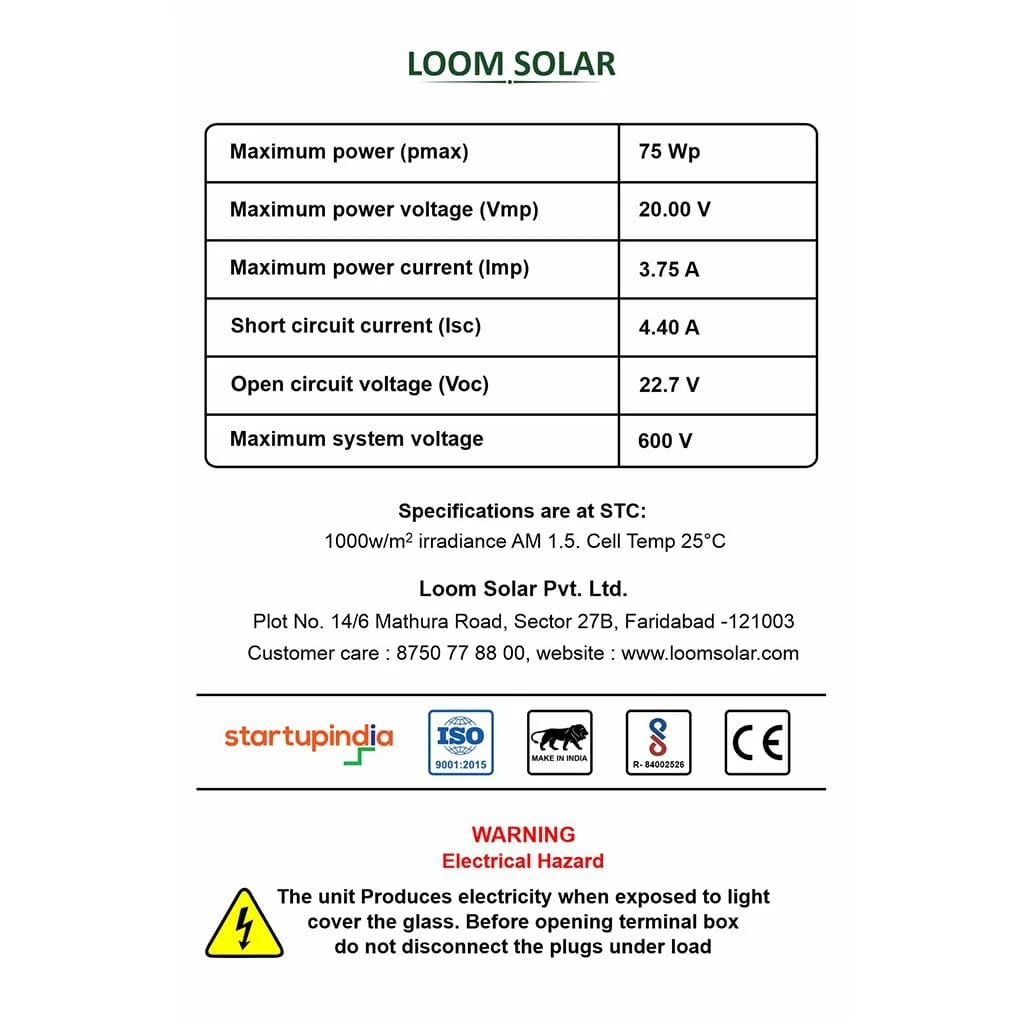

Technical
| wattage (Wp) | 75Â watts |
| voltage at max power (Vmp) | 20.0 volts |
| current at max power (Imax) | 3.75Â amps |
| open circuit voltage (VoC) | 22.5 volts |
| short circuit current (Isc) | 4.52 amps |
| Number of Cells | 36 |
Shipping Details
| Weight | 3 Kg |

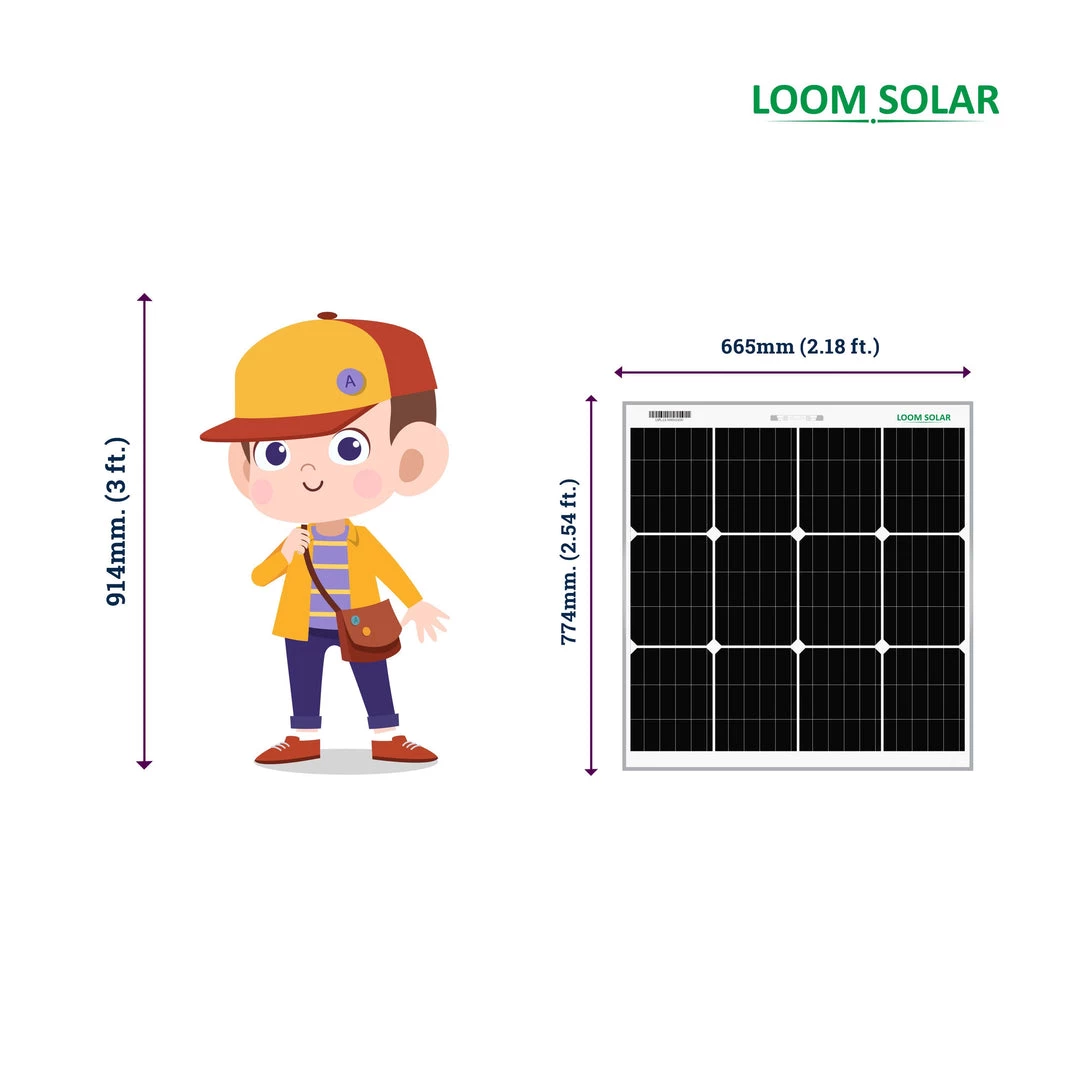

| Dimensions L x W x H | 775 x 665 x 35 mm |
Product Manual : Download product data sheet to know electrical parameters
