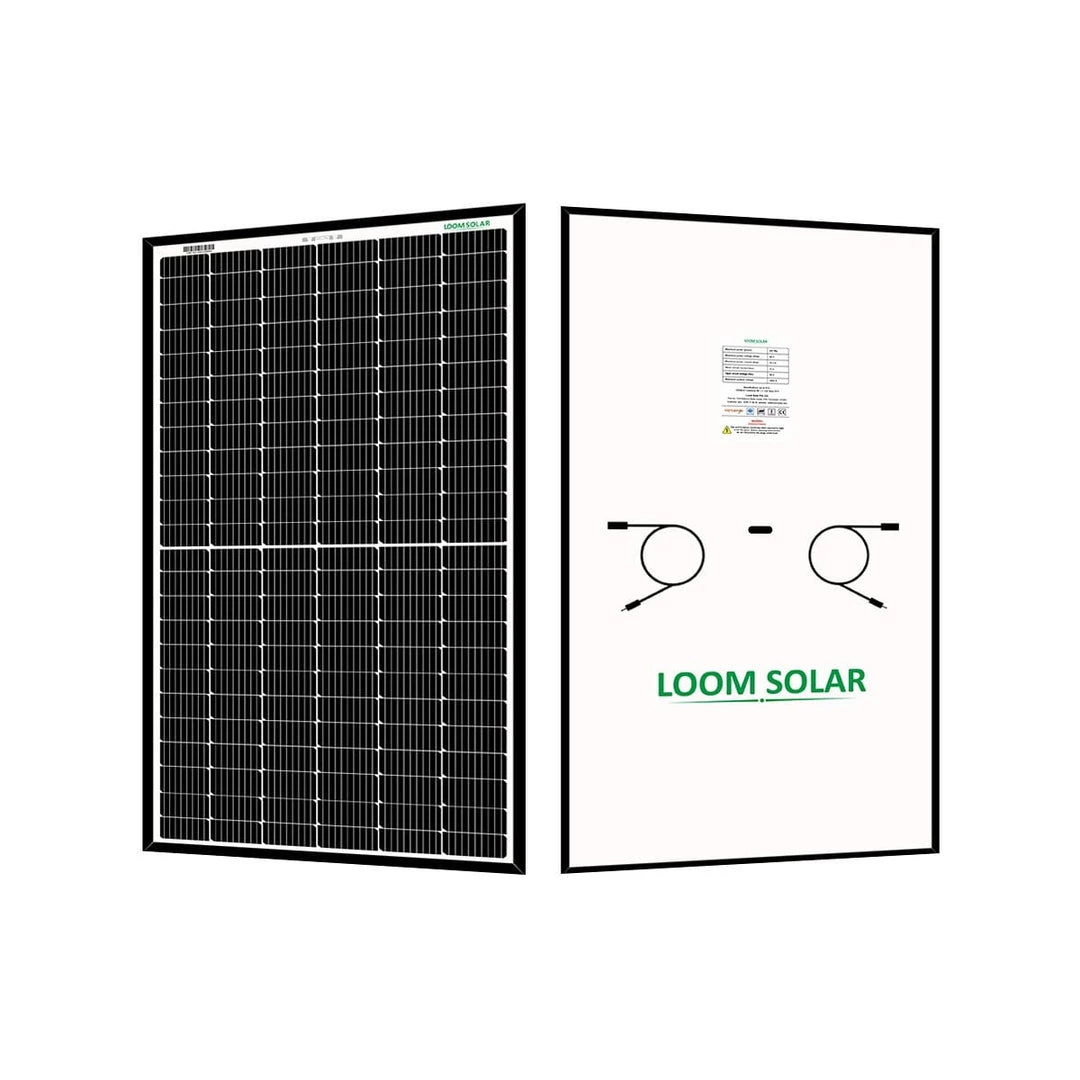

Shark – As the name indicates, It’s one of world’s most powerful and advanced technology product which limited companies across the world have seen it. SHARK 440 is a 440 watt – 9 Bus Bar, 144 Cells, Super High-efficiency Solar PV Modules that is made of Pure Mono Perc Cell technology in love with Germany. Â

The SHARK 440 breaks multiple innovation barrier,
1) reducing the impact of shadow from 33 %Â to 16.5 %.Â

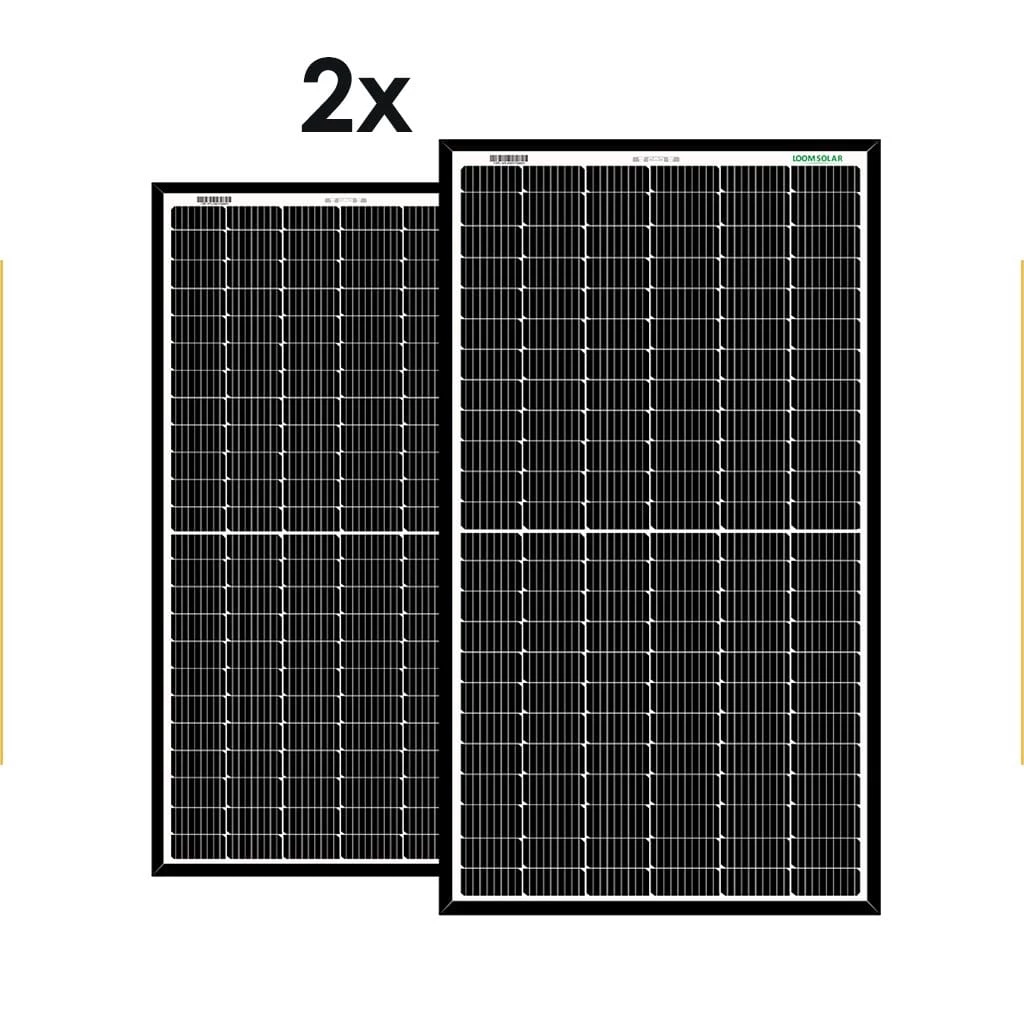

2) Now in a kW Installation, 2 panels shall be used instead of 3 which reduces the installation cost such as cost of Stand, Wire, Connector, Civil work, etc.
3) For A residential system, this is one of the best panels to install on Rooftop since it will generate 30-50% more power in a limited space compared to conventional Poly Solar Panels.
4) It has a super-strong frame with middle support for longer life and sustainability.
Â
Product Video
Descriptions
| Brand | Loom Solar |
|---|---|
| Output Power | 440 Watts |
| Space Requirement | 24 sq. feet |
| Operating Voltage | 24 Volt |
| Panel Technology | Mono Perc |
| Manufacturer warranty | 10Â year on manufacturing defects |
| Performance Warranty | 25 Years |
| Additional Features 1 | 6th Generation Monocrystalline Solar Cell (PID FREE) from Germany |
| Additional Features 2 | Cell Conversion efficiency > 22% |
| Additional Features 3 | Compliance with IEC standards |
Â

Â
Technical
| wattage (WP) | 440 Watts |
|---|---|
| voltage at Max Power | 42 Volts |
| current at max power | 10.5amps |
| open circuit voltage | 49 volts |
| short circuit current | 11 amps |
| number of cells | 144Â |
Â
Â
Shipping Details
| Weight | 24 Kg |
|---|---|
| Dimensions L x W x H | 2063 x 1026 x 35 mm |
Â

Standard vs Shark Technology: 7 things to consider.Â

Â
# Illustrations 1:Â
Â
Â
# Illustrations 2:Â

Â
# Illustrations 3:Â

Â
# Illustrations 4:Â

SHARK Panel Structure Design

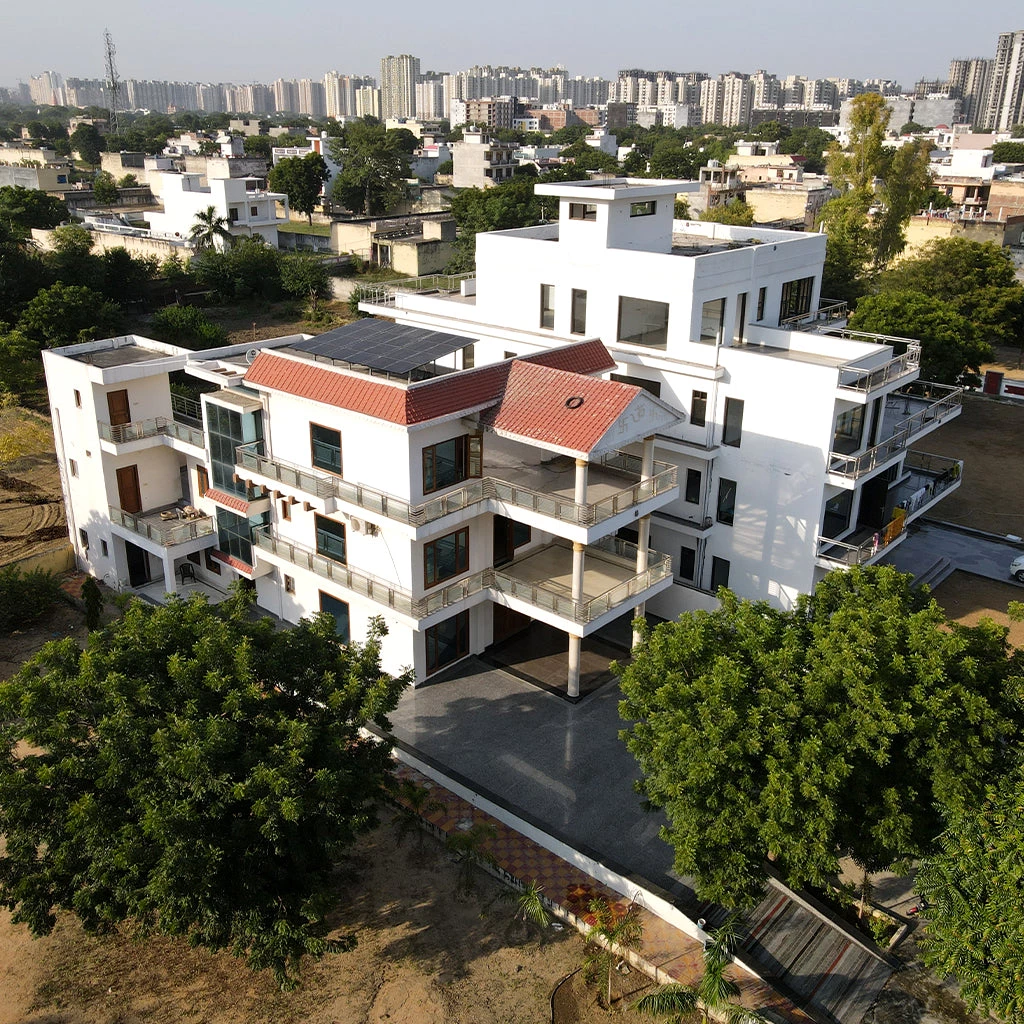

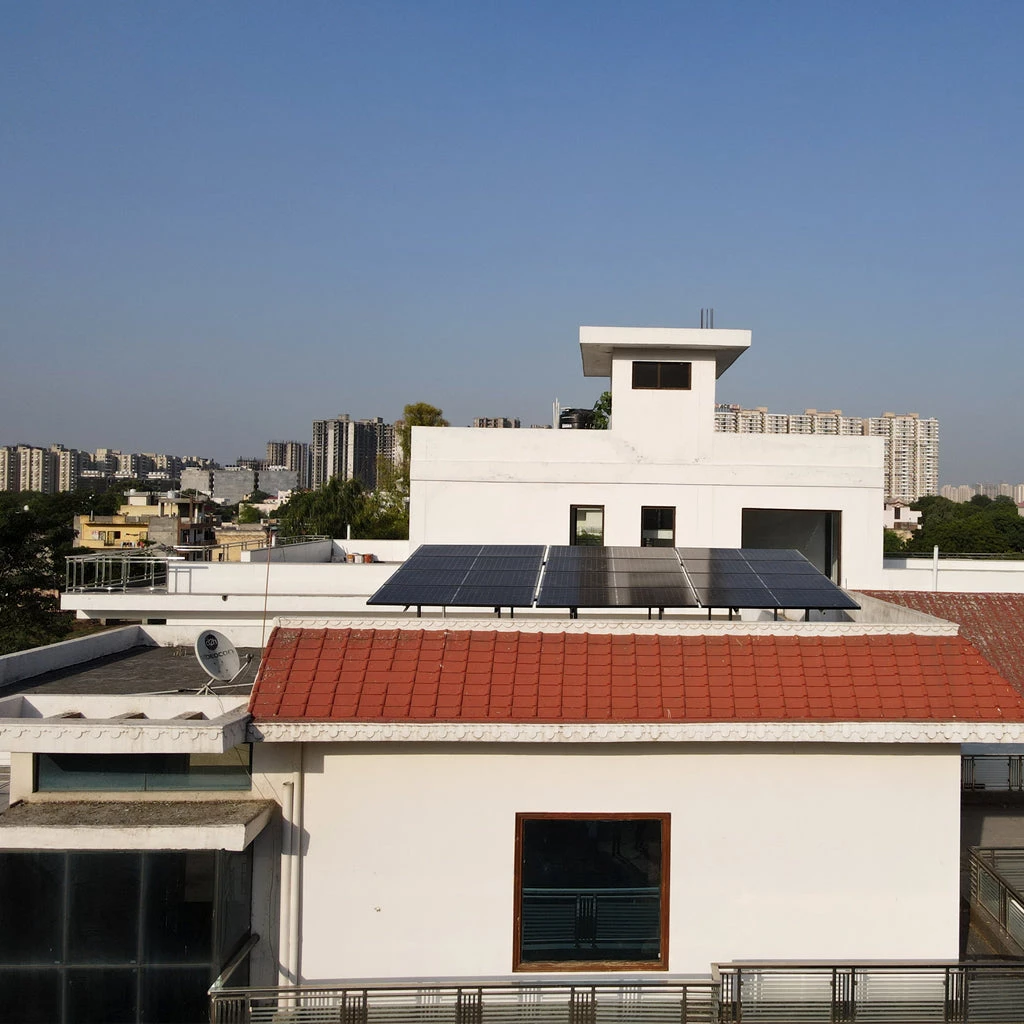

(SHARK PANEL) INSTALLATION IN DIFFERENT ROOF DESIGN
Â
#1. Tin Shed Roof (Shark Panel Installation)

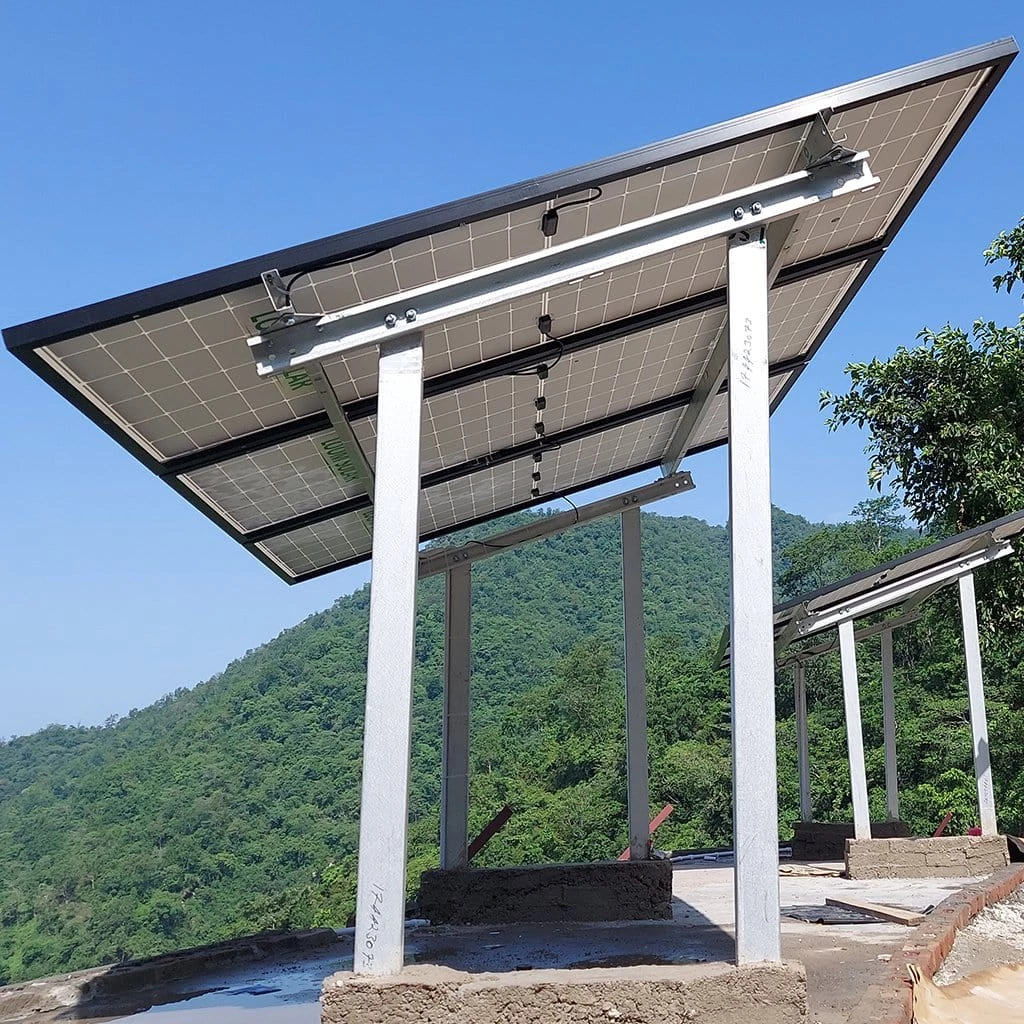

#2. High Rise Structure (Shark Panel Installation)

#3. RCC ROOF (CONCRETE BASE)

 #4. CEMENTS SHEET ROOF

#5. KHAPRAIL ROOF

#6. WALL SIDE INSTALLATIONS

#7. CUSTOMIZED ROOFÂ

#8. AGRICULTURE PUMP INSTALLATIONS

#9. INSTALLATION ON ROOF OF SCHOOL

#10. RURAL VILLAGE (HOME)

#11. FOREST FARM HOMEÂ

Product Manual : Download product data sheet to know electrical parameters
