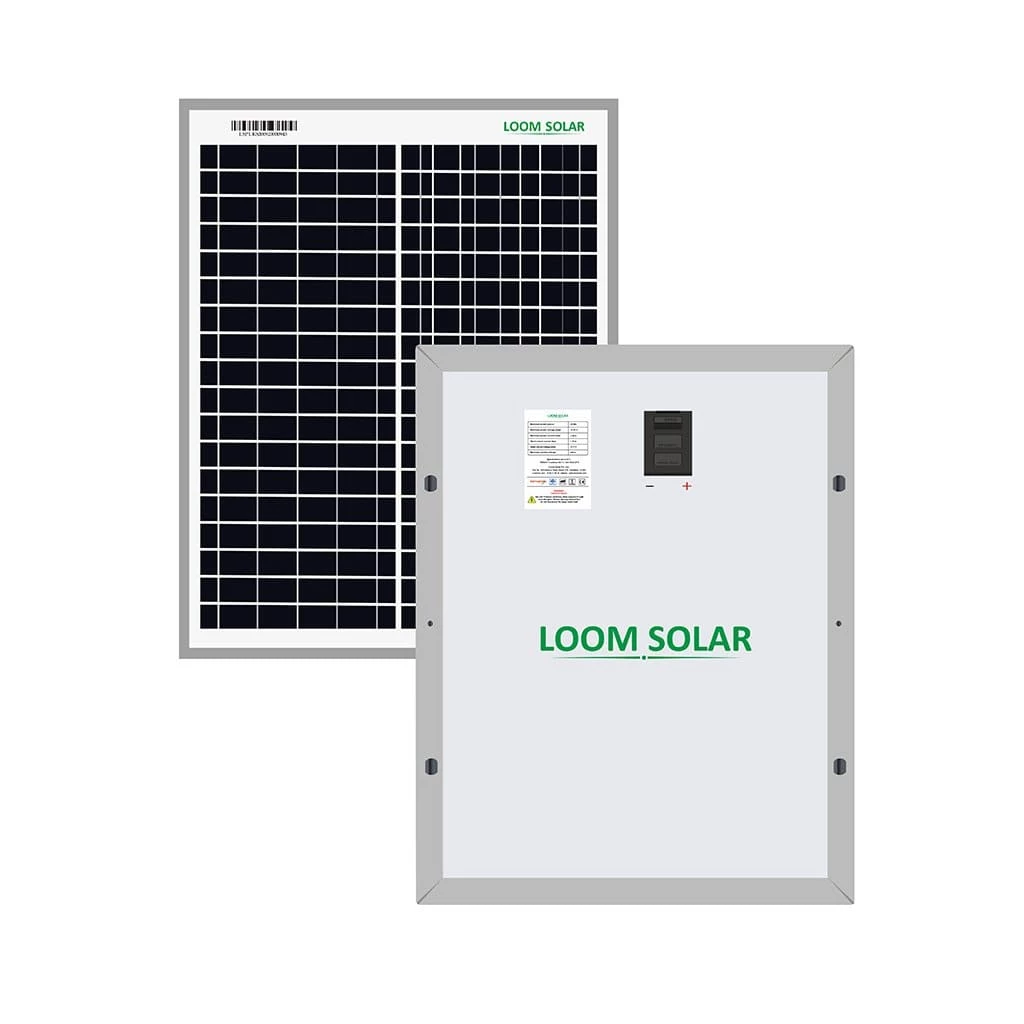

25 Years* Warranty Loom Solar Panel 20 Watt – 12 Volt For Small Battery Charging

Loom Solar has launched a mini solar panel of 20-watt for a 12-volt battery that is charged with the help of sunlight. Being light in weight, this portable solar panel finds many applications or uses. The panel is specially designed to charge small batteries up to 10 Ah or 10,000 mAh. Loom Solar is India’s premium solar brand that manufactures and sells solar systems of various capacities including small solar panels. In the family of solar panels, mini solar panels are defined by their size (dimensions), which ranges from 0.6 x 2.55 inches to 14 x 18 inches (equivalent to 1.7 sq ft, i.e., comparable to a regular medium sized home mirror).

This (Do It Yourself ) DIY solar panel can be used for your school science projects, home lighting system or small battery charging. This finds many interesting uses for being small and light weight & is easy to carry along. It weighs around 1.7 kg & comes with a junction box to connect the wires easily, aluminium frame comes with punched capsule type mounting holes for easy mounting. Additional strength is given by high durability tempered glass (3.2mm thickness), that can withstand general impact of cricket ball or hail storms.

Descriptions

Output Power	20 Watts
Operating Voltage	12 Volt
Panel Technology	Poly Crystalline
Manufacturer warranty	5 years on Manufacturing defects
Performance Warranty	25 Years
Additional Features	A+ Grade, anti PID Poly Crystalline cells
	Cell Conversion efficiency > 16%
	Compliance to IEC standards



Technical Details

Wattage (Wp)	20
Voltage at Max Power	18.20 volts
Current at Max Power	1.10 amps
Open Circuit Voltage	22.40 volts
Short Circuit Current	1.45 amps
No. of cells	36

Shipping Details

Weight	1.7 Kg

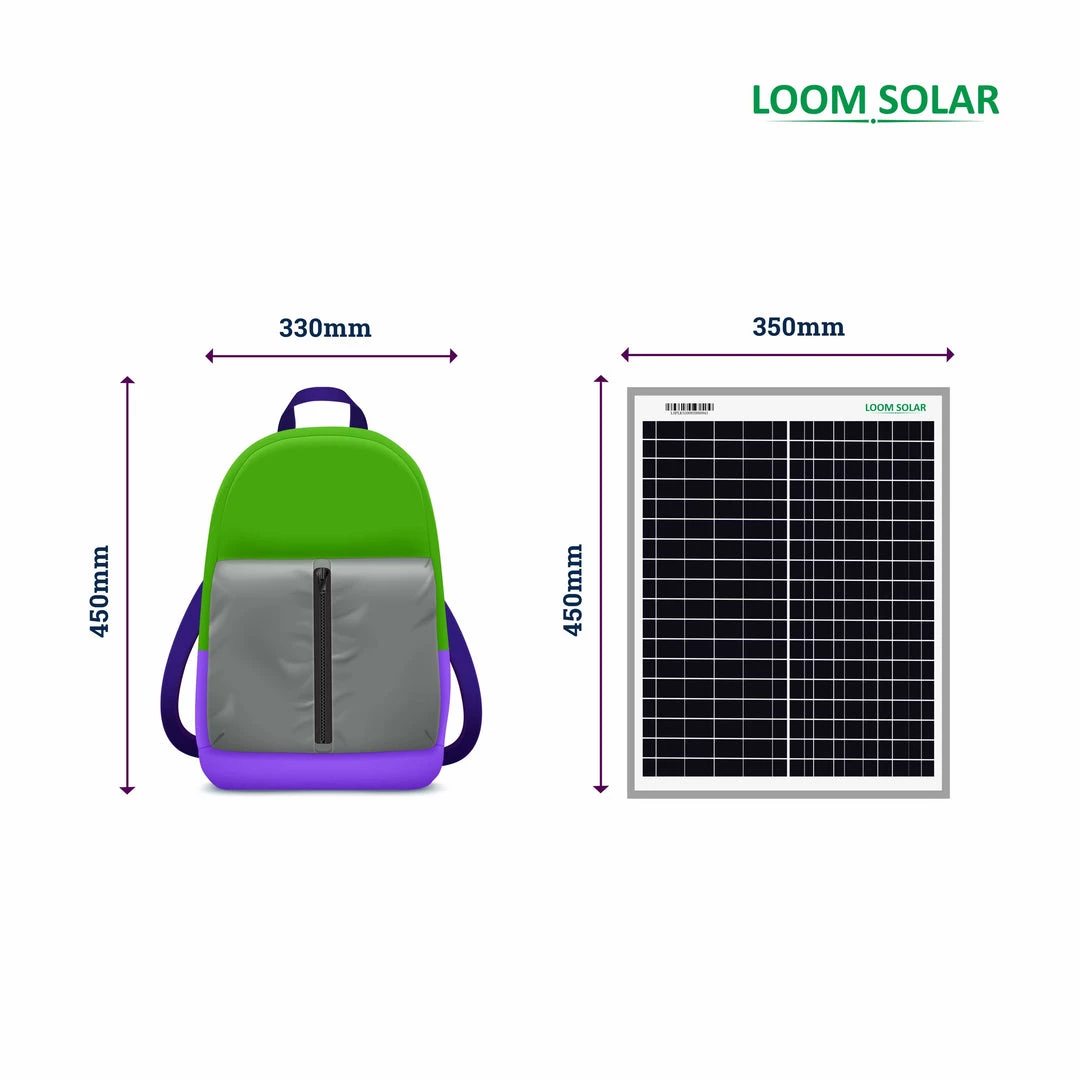

Dimensions L x W x H	450 x 350 x 22 mm



Product Manual: Download product data sheet to know electrical parameters
