25 Years* Warranty Loom Solar Panel 190 Watt / 12 Volt Mono Perc Solar Panels

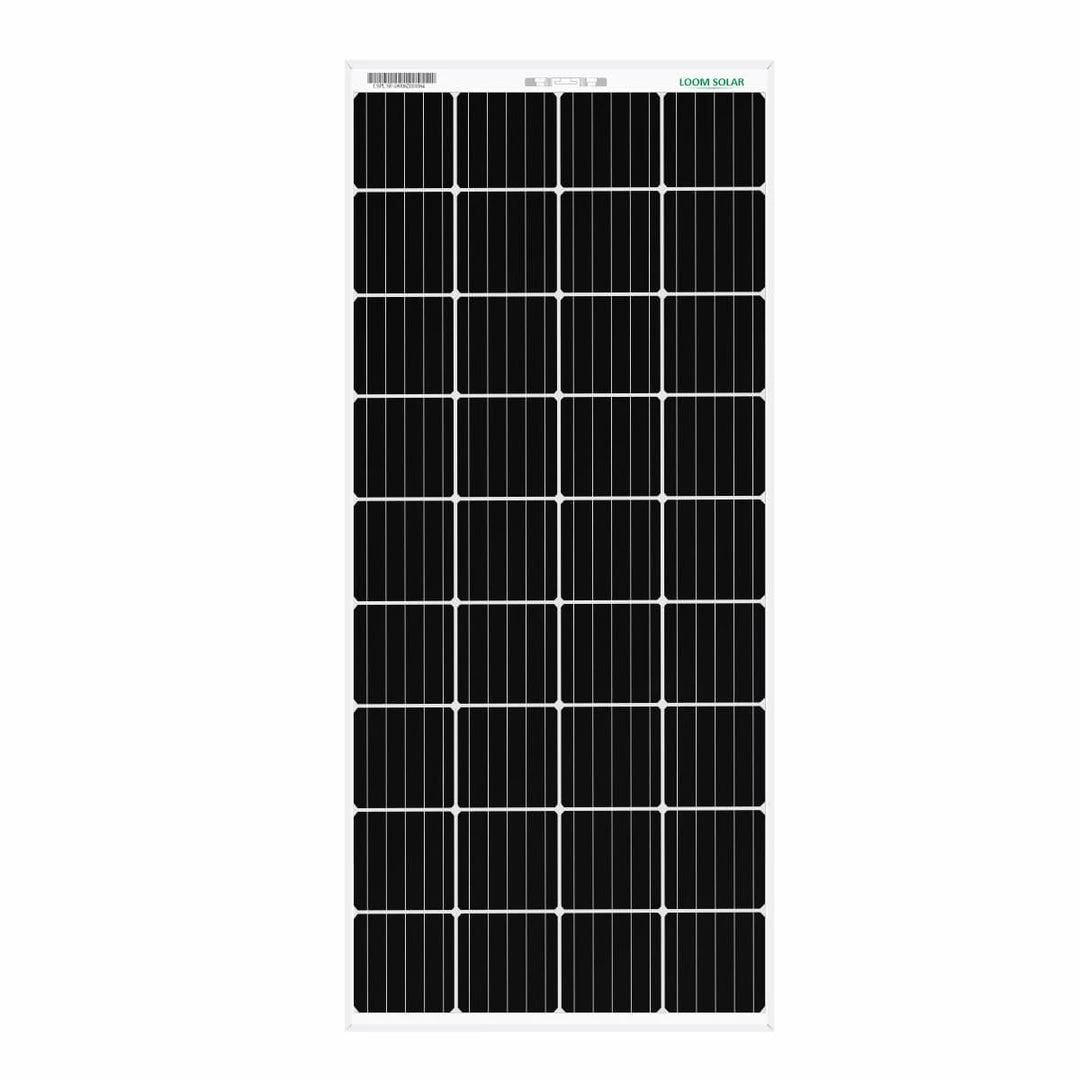

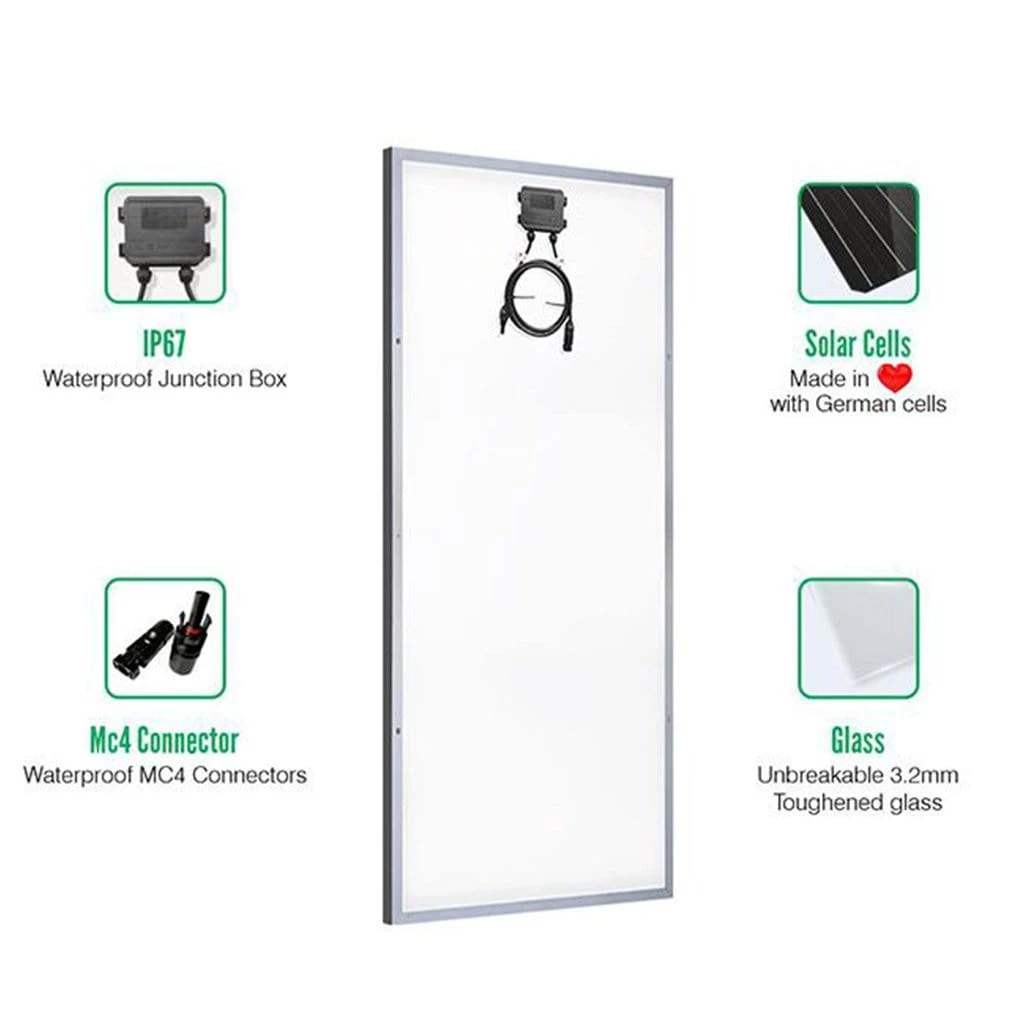

Loom Solar 190 watt solar panel is made of A grade black silicon cells to generate electricity from sun. The cells are made of superior quality silicon which gives higher efficiency up to 20% and also performs better in low light. It is the latest panels in mono crystalline technology that comes with 5 busbars 36 cells and 25 years performance warranty. IP 67 rated junction with MC4 connectors and 1 meter wire is given for outdoor use.

Descriptions

Brand	Loom Solar
Output Power	190 Watts
Space Requirement	10 sq. feet
Operating Voltage	12 Volt
Panel Technology	Mono Perc (latest)
Manufacturer warranty	10 year on Manufacturing defects
Performance Warranty	25 Years
Additional Features	A+ Grade, anti PID Mono cells
	Cell Conversion efficiency > 20%
	1 meter wire for connection with MC4 connectors Inside



Product Unboxing Video

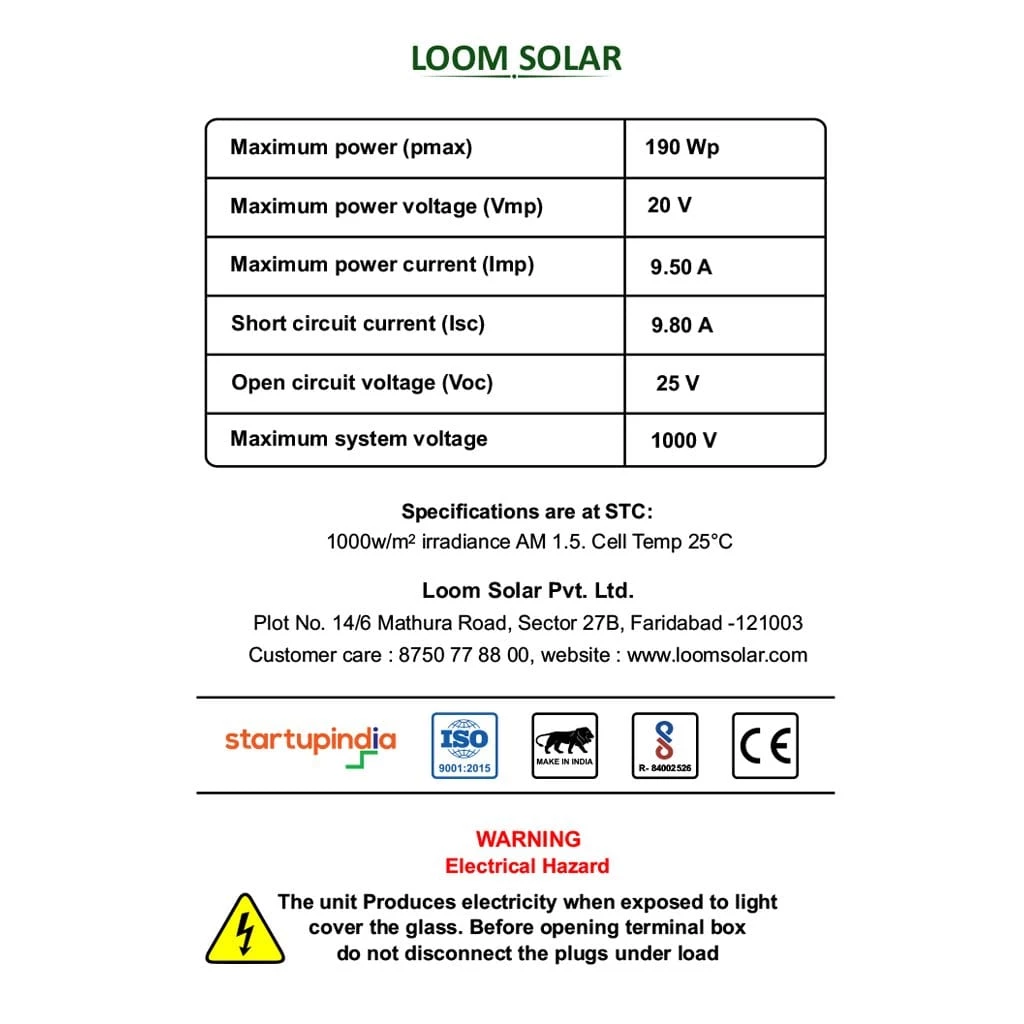

Technical

wattage (Wp)	190 watts
voltage at max power	20 volts
current at max power	9.50 amps
open circuit voltage	25 volts
short circuit current	9.80 amps
number of cells	36

Shipping Details

Weight	11 Kg
Dimensions L x W x H	1500 x 665 x 35 mm

Product Manual : Download product data sheet to know electrical parameters
