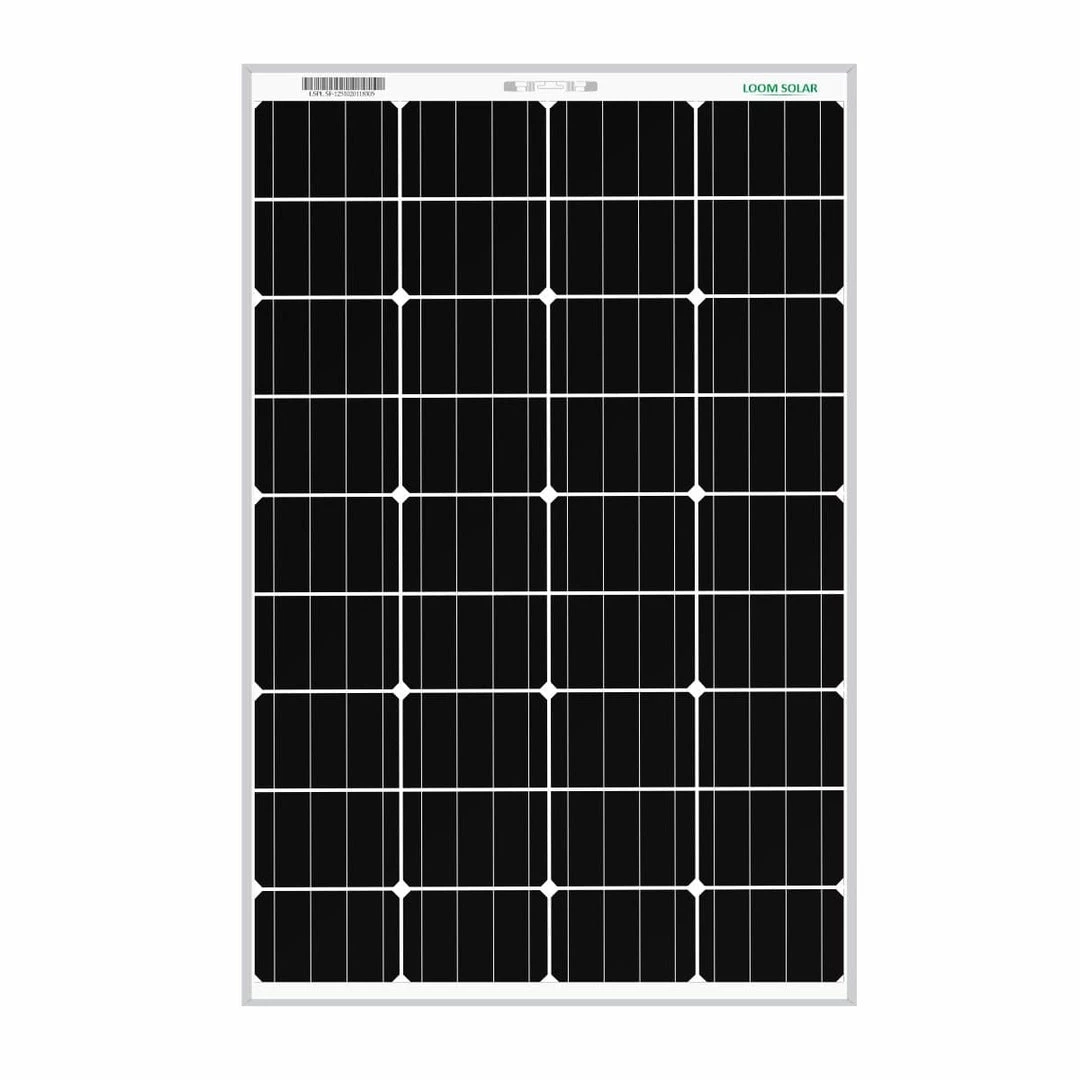

25 Years* Warranty Loom Solar Panel 125 Watt – 12 Volt Mono Perc Solar Panels

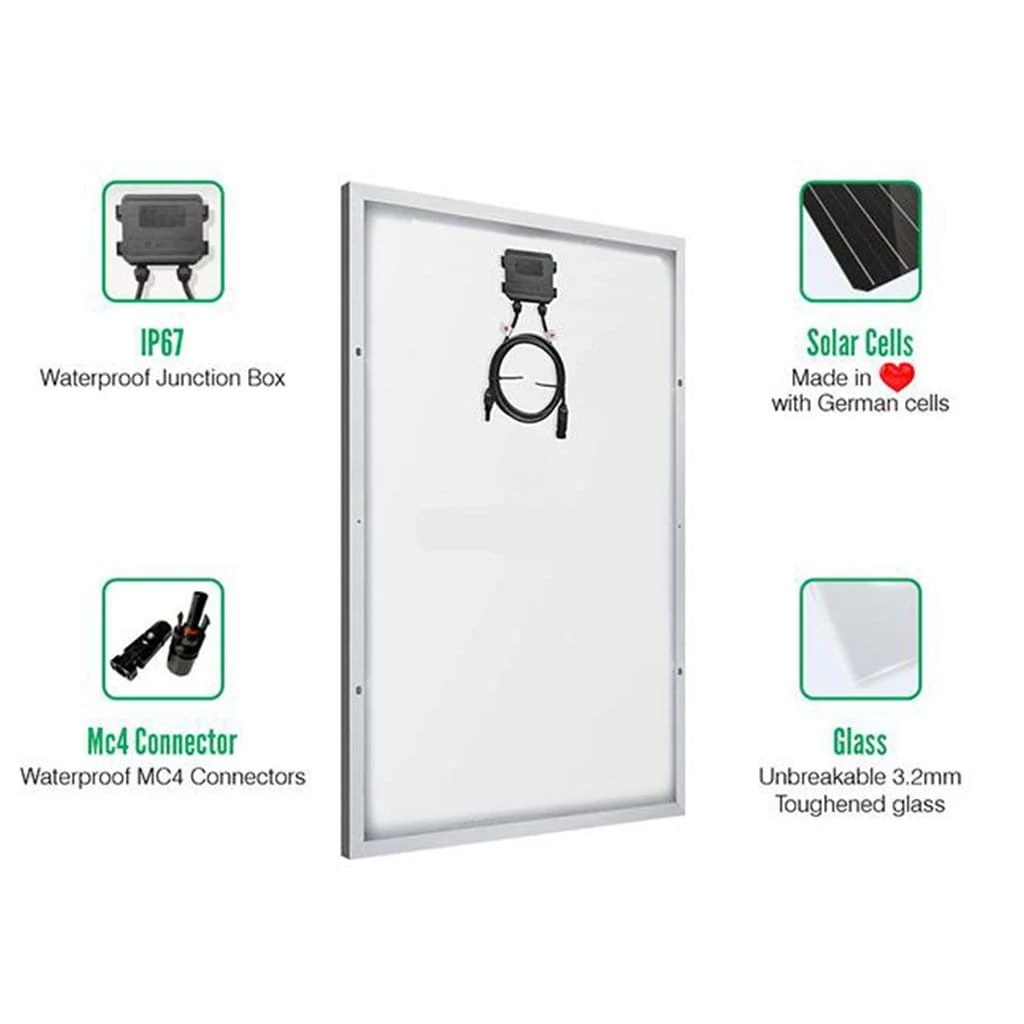

Loom Solar 125 watt mono panels are made of A grade mono perk cells that gives higher efficiency even in low light and cloudy weather. Loom solar is only company in India that makes mono panels using perk cells in 12 volt design. The additional feature includes 4 busbars, 36 cells and 25 years performance warranty. IP 67 rated junction box is given with MC4 compatible cable connector for higher module efficiency.

Descriptions

Brand	Loom Solar
Output Power	125 Watts
Space Requirement	8 sq. feet
Operating Voltage	12 Volt
Panel Technology	Mono Perc
Manufacturer warranty	10 year on Manufacturing defects
Performance Warranty	25 Years
Additional Features	A+ Grade, anti PID Mono cells
	Cell Conversion efficiency > 19%
	Compliance to IEC standards



Product Unboxing Video



Technical

wattage (Wp)	125 watts
voltage at max power	20.4 volts
current at max power	6.13 amps
open circuit voltage	23.8 volts
short circuit current	6.45 amps
Number of Cells	36



Shipping Details

Weight	8 Kg

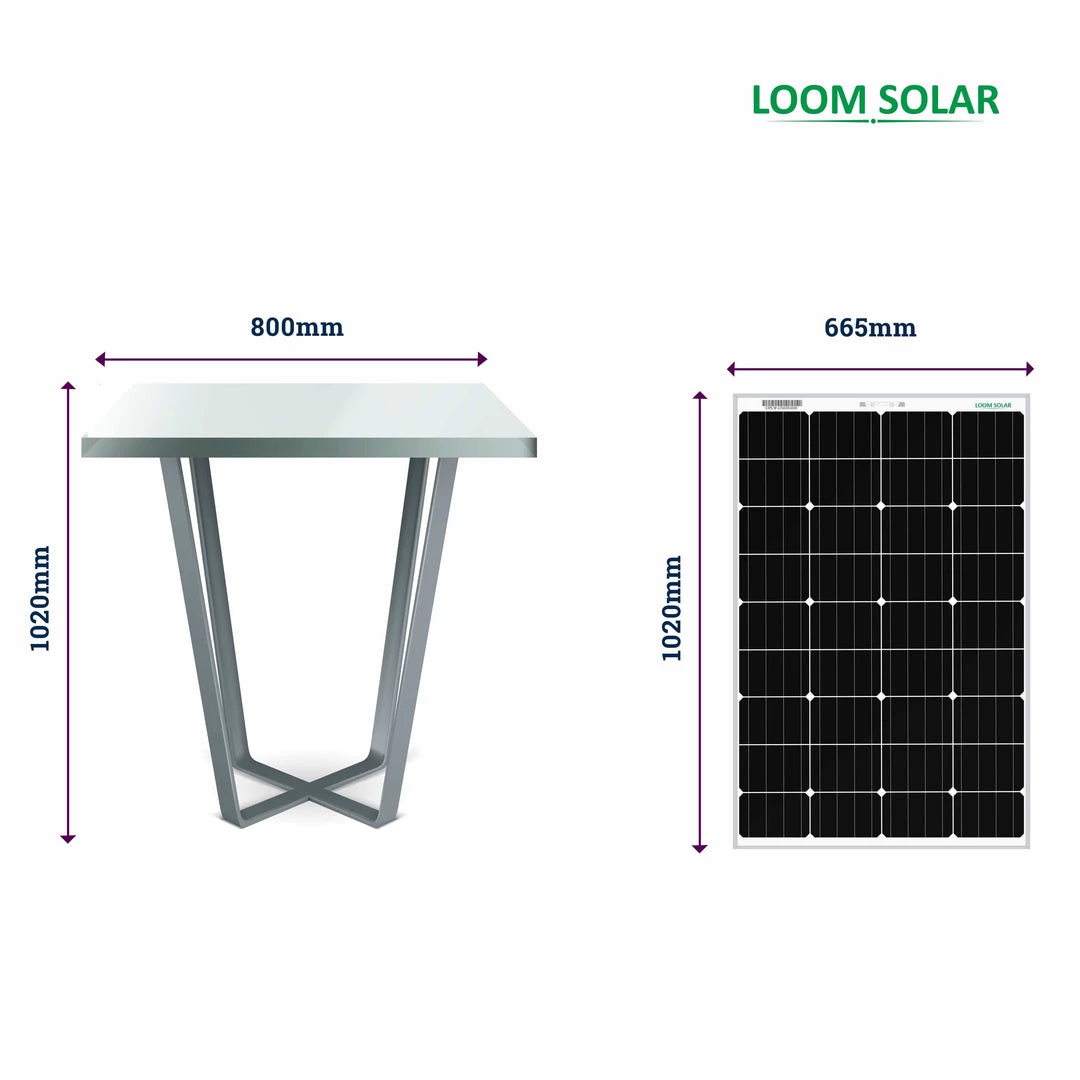

Dimensions	height – 3.5 feet width – 2.1 feet



Product Manual : Download product data sheet to know electrical parameters
