25 Years Warranty Loom Solar 5 Kw On Grid Solar System Grid Connected

This is the best solution to reduce your electricity bill of a big house having a power requirement of 5kW. It uses the latest technology-based solar panels SHARK 440 from Loom Solar.

A 5 kW solar system generates 25 units every day from morning 9 am to 5 pm which is sufficient to run multiple air conditioners along with lighting load for a house, shops, offices, and factories.

Product Overview

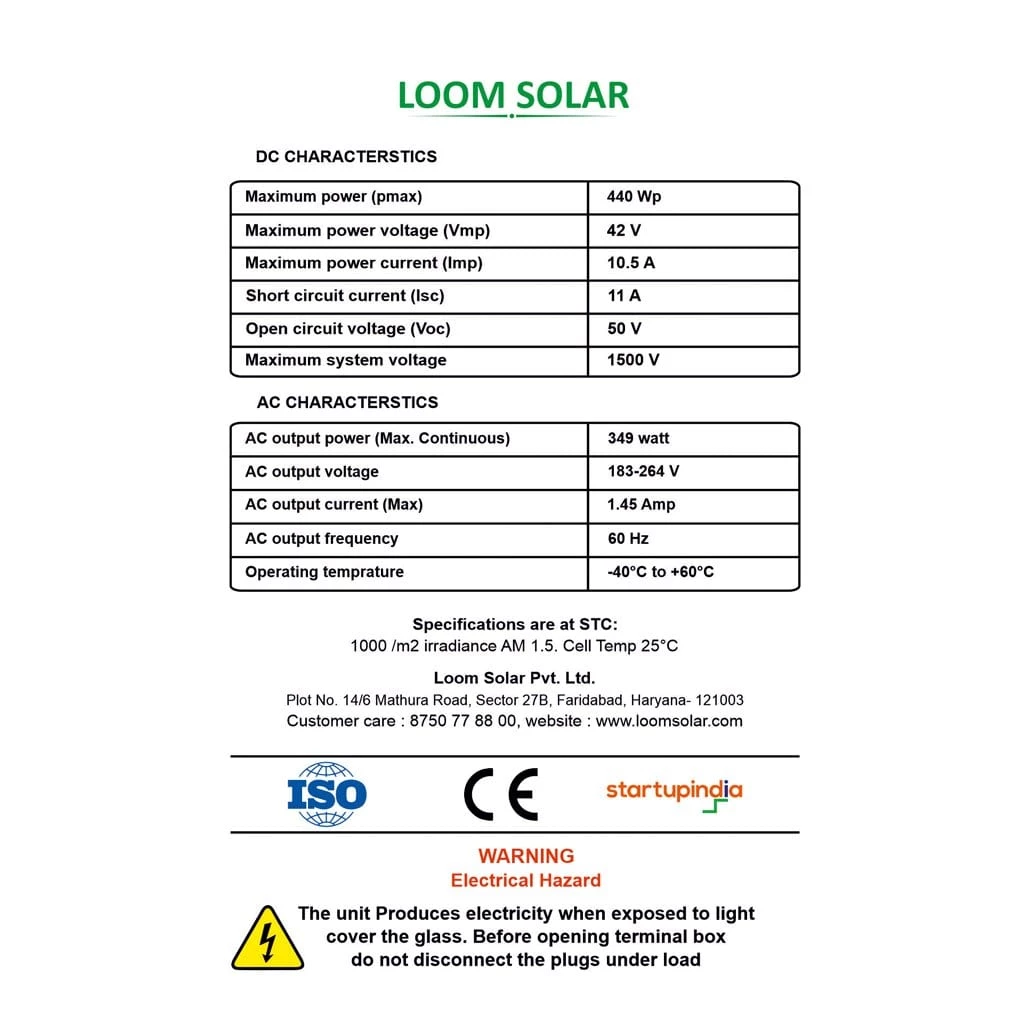

Solar Panel	Shark 440W Super High-Efficiency Module
Space required	350 sq. ft.
1 Panel dimension	Length – 6.9 feet, width – 3.4 feet
1 panel weight	25 kg
Total panels	12 Nos. (Shark 440 watt each)
Solar Inverter	5kW 3phase String Inverter



Package components

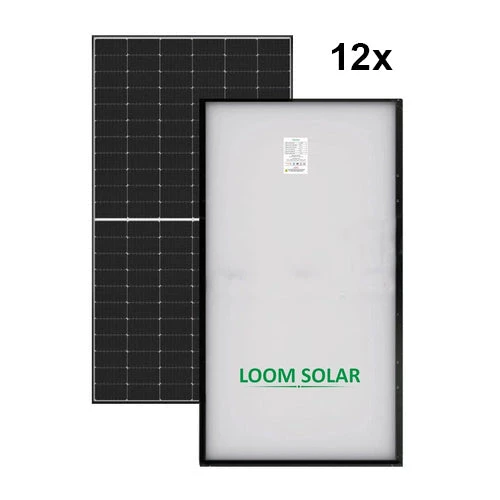

Shark 440 watt solar panel

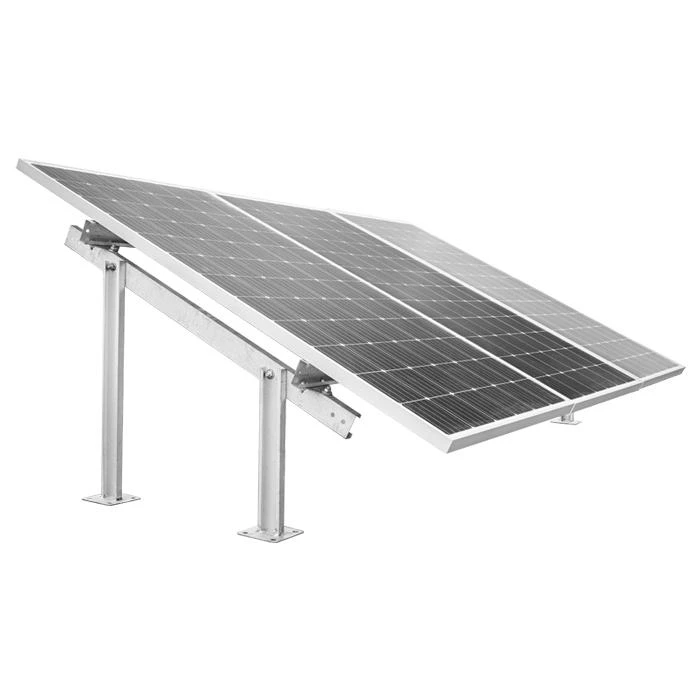

Solar panel stand (made of galvanized iron)

Connecting Cables

Panel level monitoring device

Standard installation – Included

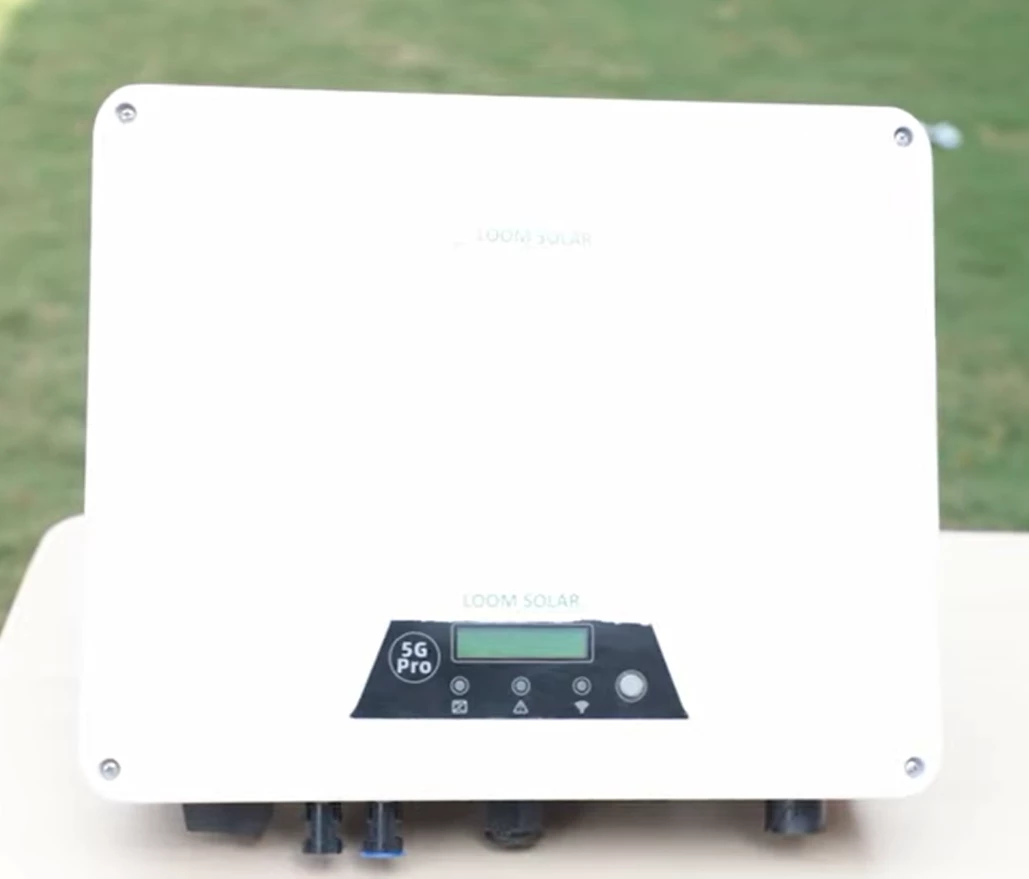

5kW On-grid String Inverter (3Phase)

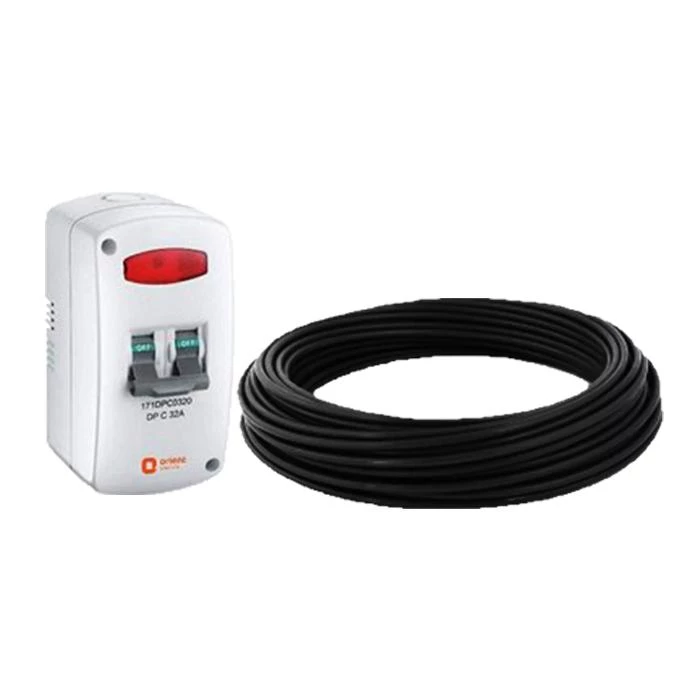

Protection Devices (DCDB, ACDB, LA & Earthing kit)

Installation Video



disclaimer : In case, you want to go for net – meter, it has to be applied by home owner itself. read the document to apply for net meter.

Buying Guide

Download product Installation diagram.
