25 Years Warranty Loom Solar 4 Kw Grid Connected Solar AC Module

Loom solar introduces 4 kW solar power generating system using the world’s latest technology in a solar panel called Solar AC Module.

A 4 kW solar system generates 20 units every day from morning 9 am to 5 pm which is sufficient to run multiple air conditioner along with Refrigerator, Television, Fans and lights during the day in a big house.

Product Overview

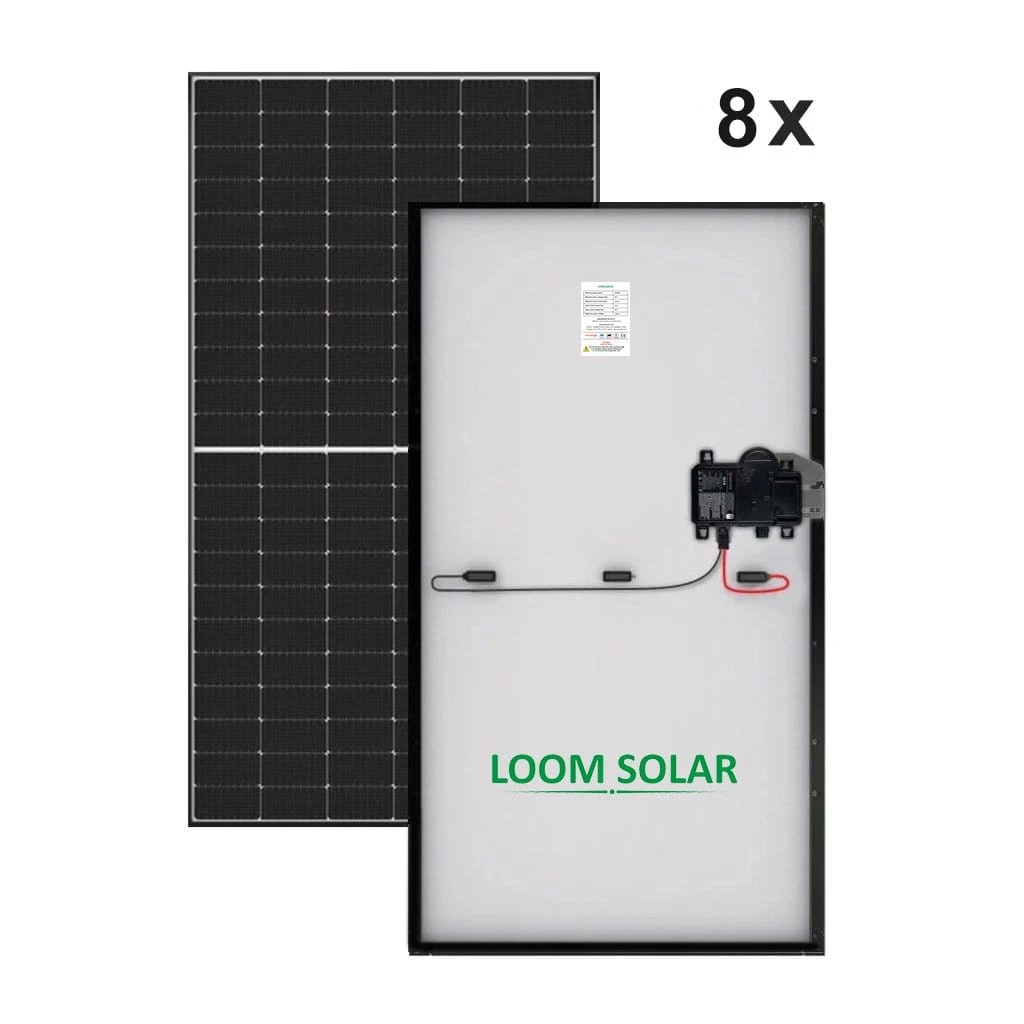

Solar Panel	Shark 440W * 8
Space required	240 sq. ft.
1 Panel dimension	Length – 6.9 ft., width – 3.9 ft.
1-panel weight	25 kg
Micro-Inverter	IQ 7A ACM



Package components

8 Nos. of AC module

Solar panel stand (rust free- made of galvanized iron), Fastners,

Mobile Monitoring – Envoy device

Connecting Cables, AC wire, AC distribution box,

Standard Installation – Included, Civil work excluded

DC vs AC Module: 7 things to consider.

# Illustrations 1: Performance when some panels are shaded

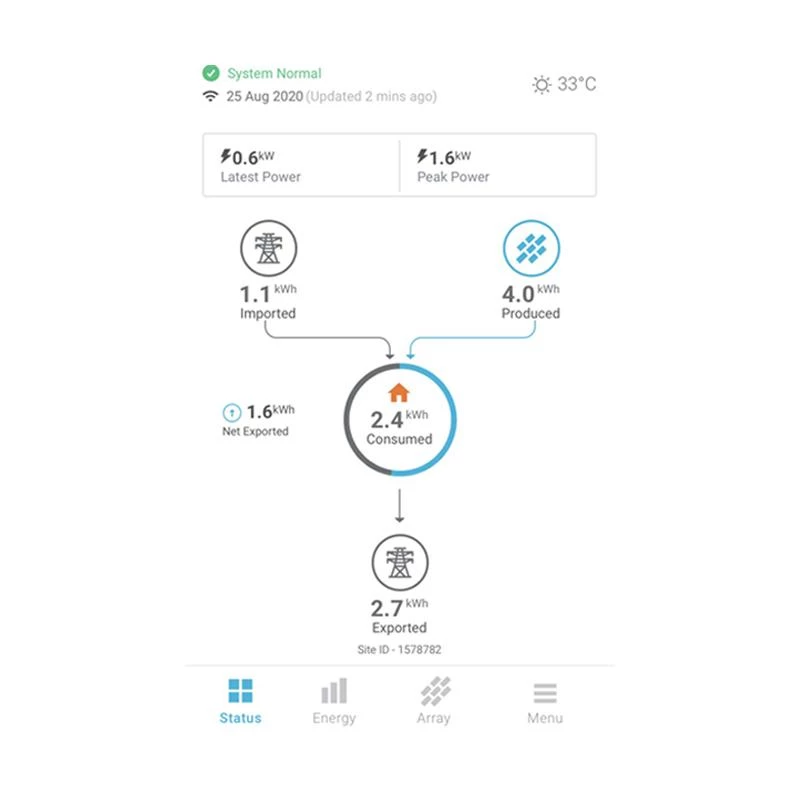

# Illustrations 2: Panel level performance monitoring







Customer Review Video



disclaimer : In case, you want to go for net – meter, it has to be applied by home owner itself. read the document to apply for net meter.

Buying Guide

Download product Installation diagram.
