25 Years Warranty Loom Solar 1 Kw Grid Connected Solar AC Module

Loom solar introduces 1 kW solar power generating system using the world’s latest technology in a solar panel called Solar AC Module.

A 1 kW solar system generates 4 – 5 units a day from morning 9 am to 5 pm which is sufficient to run 1 Inverter AC up to 1.5 ton along with Refrigerator, Television, Fans and lights during the day from small 2-3 bhk home.

Note: It does not work when there is a power failure.

Product Video

Product Overview

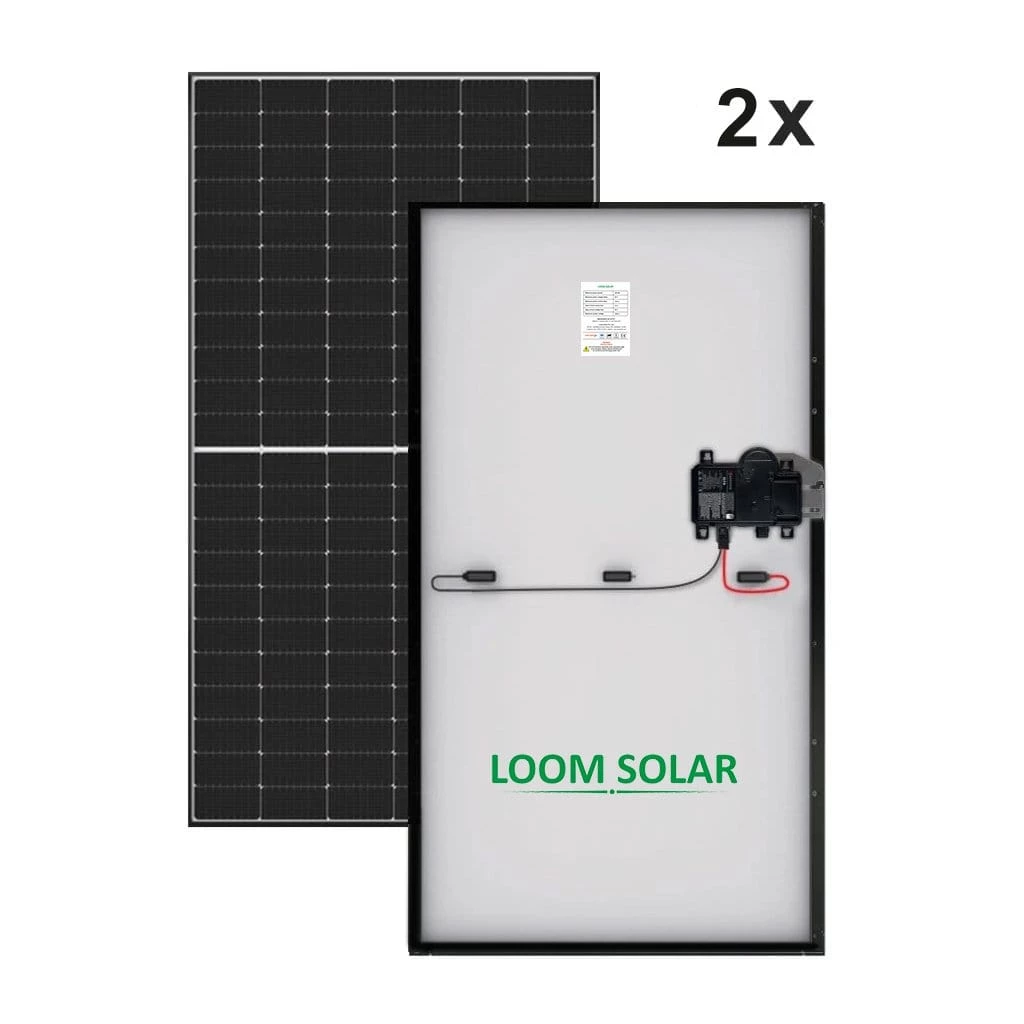

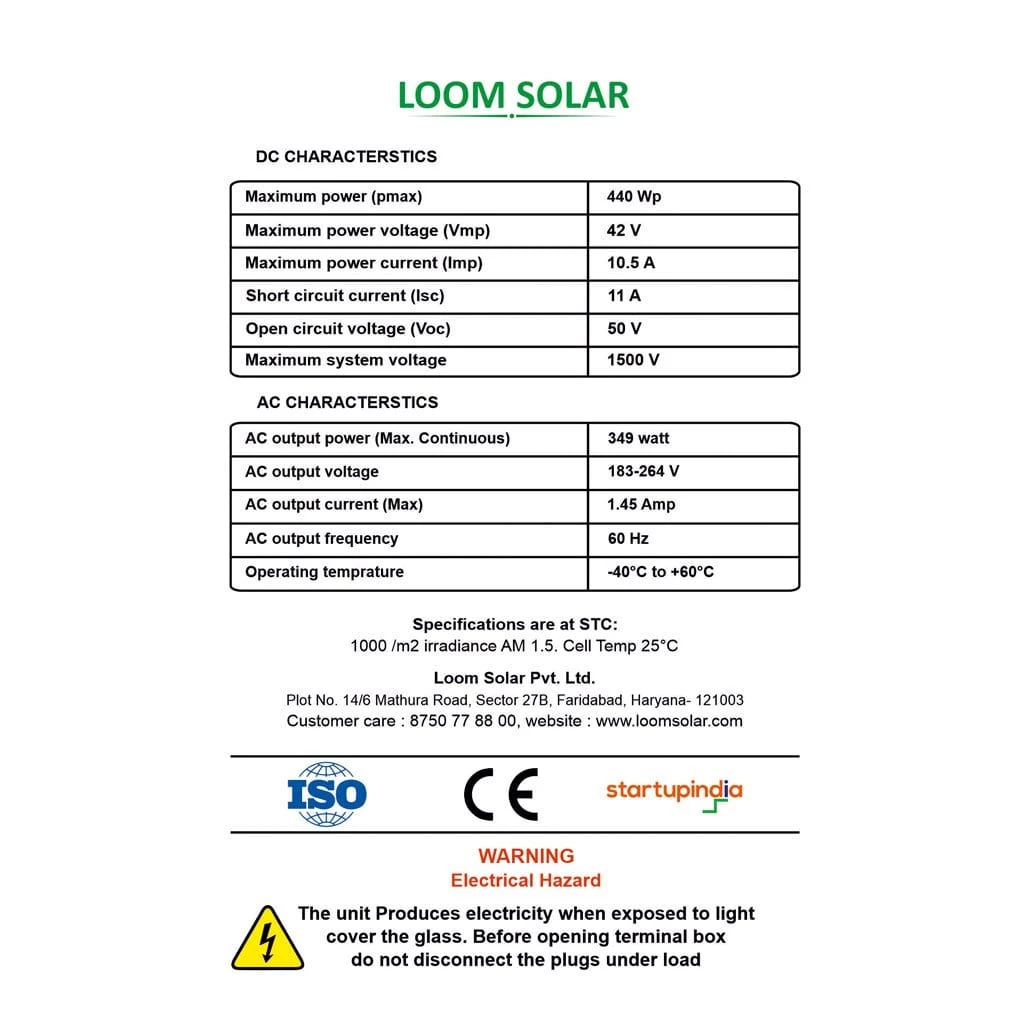

Solar Panel	Shark 440 watt Mono perc AC Module
Space required	60 sq.ft.
1 Panel dimension	Length – 6.9 feet, width – 3.4 feet
1-panel weight	25 kg
Micro-Inverter	IQ 7A ACM

Package components

2 Nos. of Shark 440W solar ac module

Solar panel stand (rust free – made of galvanized iron), Fasteners

Connecting Cables, MCB,

Standard installation – Included, Civil work excluded

DC vs AC Module : 7 things to consider.

# Illustrations 1: Performance when some panels are shaded





disclaimer: In case, you want to go for net – meter, it has to be applied by homeowner itself. read the procedure here.

Mobile Monitoring is available at additional cost

Buying Guide

Download product  Installation diagram .
