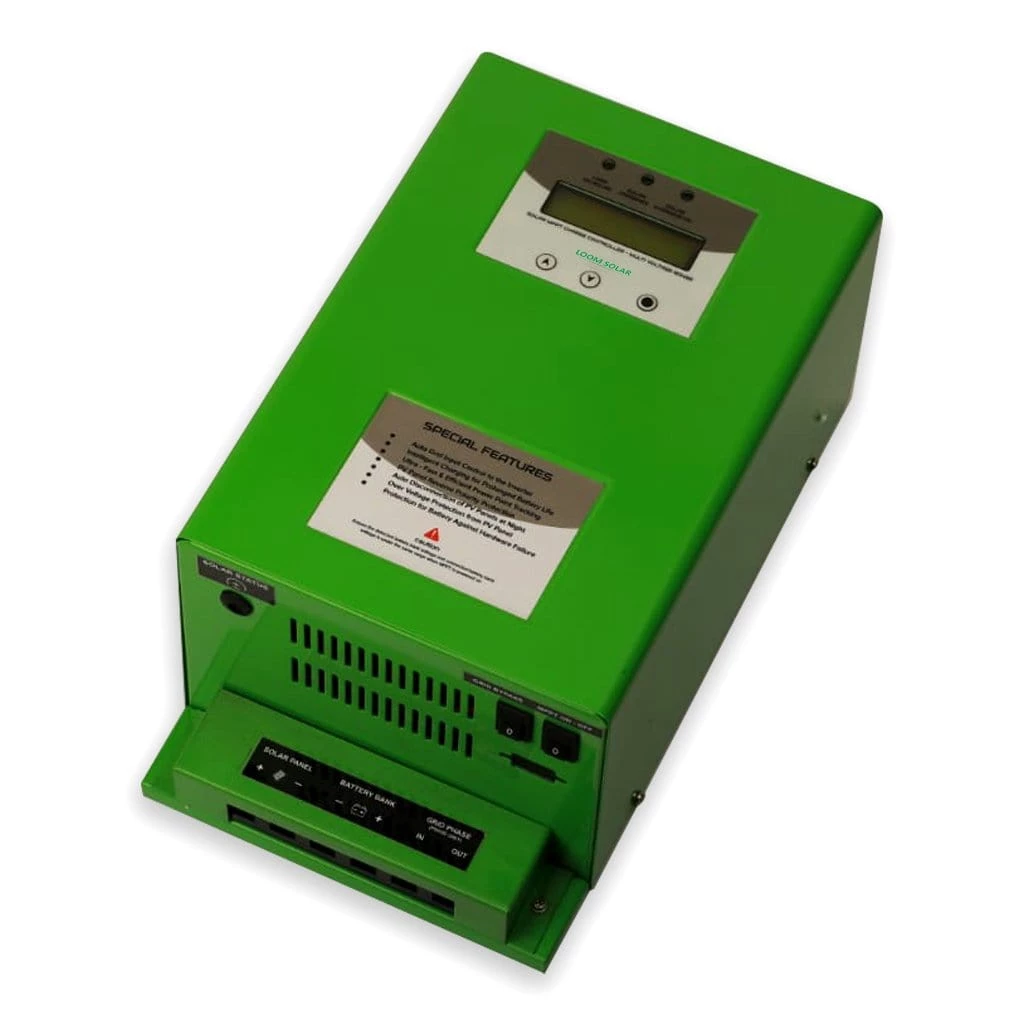

12 Months Warranty Fusion MPPT Solar Charge Controller 40 Amps 24 Volt Charge Controllers

Fusion 4024 is a solar management unit which converts a normal grid inverter into hybrid solar inverters. The device is powered by latest generation microprocessor and Pure MPPT Technology. It makes your solar system generate maximum solar power – 30% more than ordinary charge controllers. The micro-processor enabled three stage charging ensures optimum charging of batteries which increases their life by 6 months.

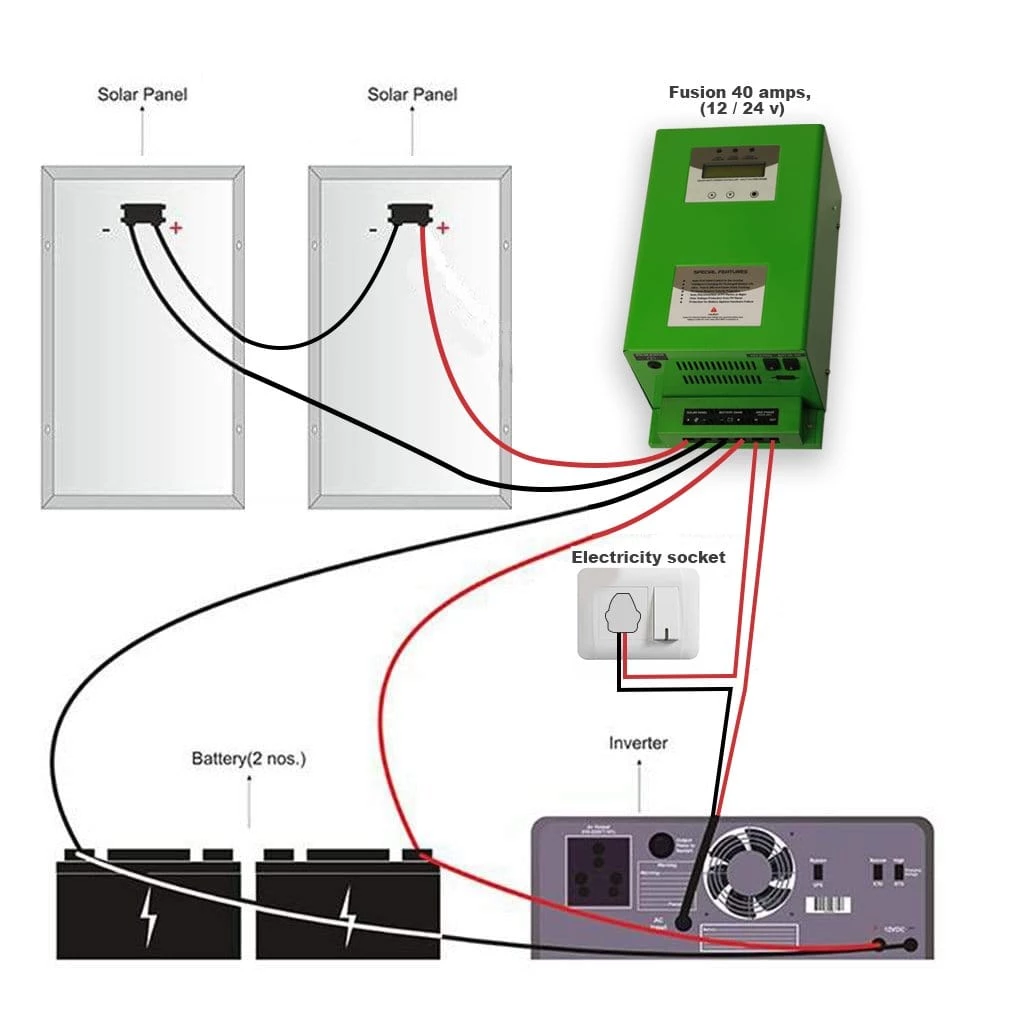

This product converts an existing ups/ inverter into a solar hybrid inverter. It is a 40 amps pure mppt solar management unit that connects with single (12 v), and double (24v) batteries.

Product Descriptions

System rating	40 Amp @ 12/24 Volt
Charging current (max)	40 Amp
Panel Support	Up to 1,200 watts
Technology	pure mppt
Wire Size (max)	6 sq mm
Auto Battery Selection	12-24 Volt
VoC	36V ~ 100V

Product Video

Special Features

• Supports Up to 700 watts of solar panel (12 /24 Volt) on single battery and 1200 watts of solar panel on double battery system.
• protections provided against short-circuit, voltage fluctuations
• lcd display is provided for easy monitoring of the system.

Display: LCD indications

• power available – mains on
• connected with electricity – mains connected
• battery low warning
• charging from solar – solar charging
• rupee savings

Display – LED Indications (ON/ OFF / BLINKING)

• Blue Led On – Home appliances is running from solar panels
• Green Led On – Solar Power is available.
• Red Led On – Battery is charging through Solar panels.

Applications

off-grid solar systems #

Installation Manual : Download product Installation and operation manual
