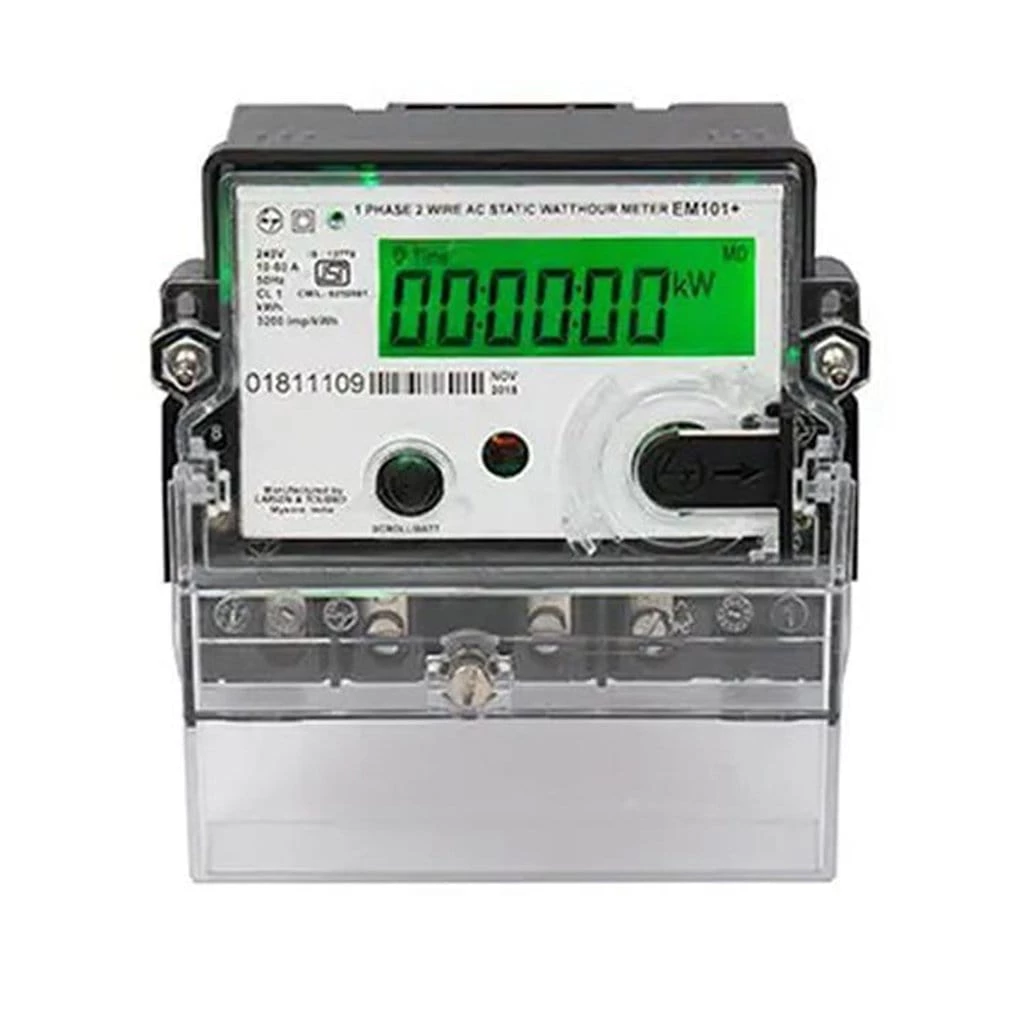

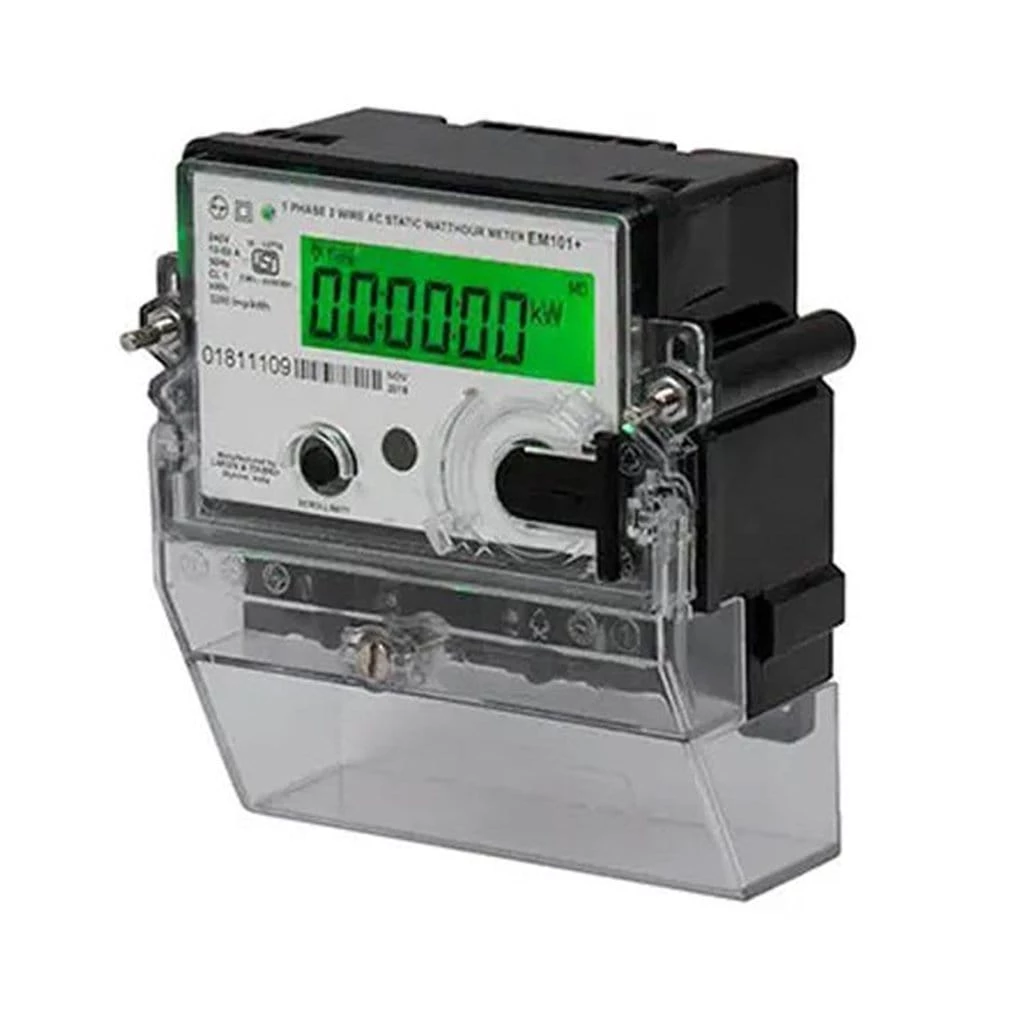

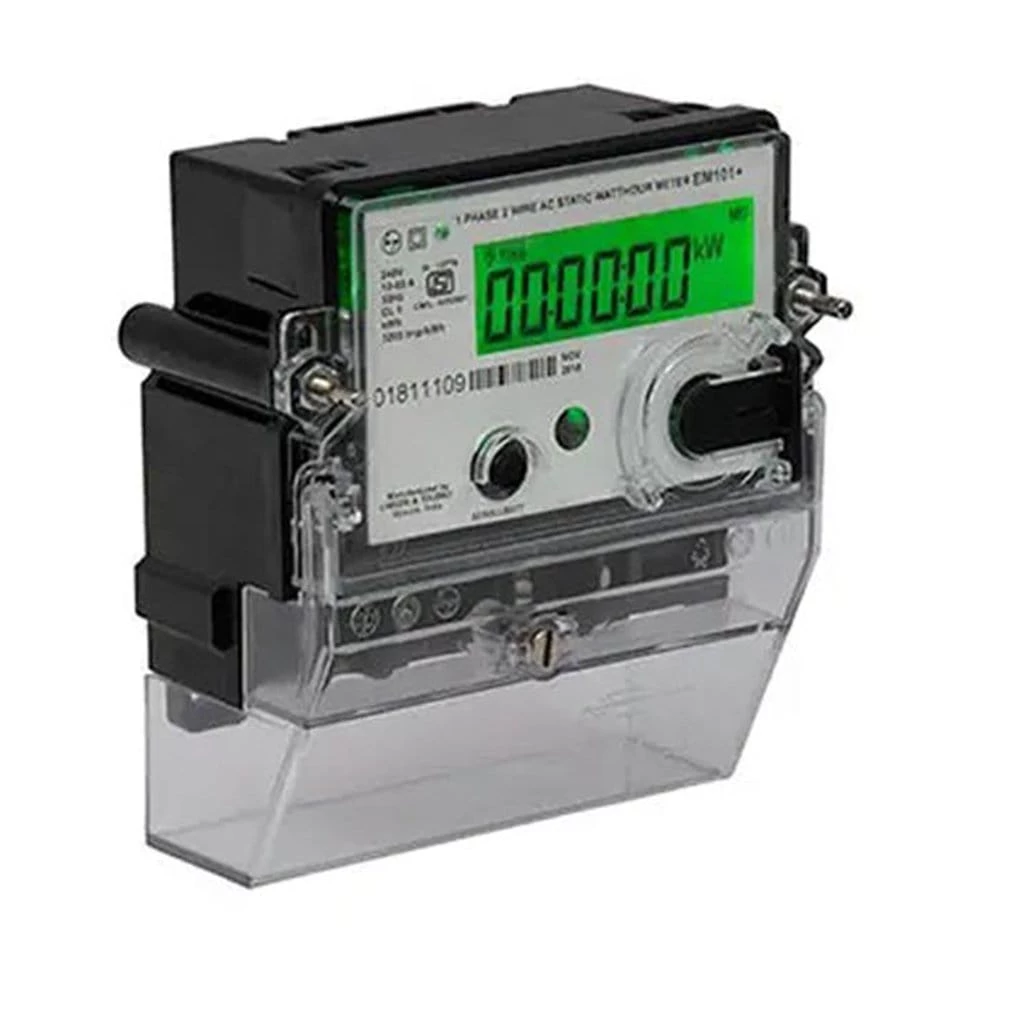

1 Years Warranty L&T Single Phase Net Meter For 1-3kW Grid Connected Solar System

L&T Metering provides accurate and reliable solutions for residential meters. Single Phase Net meter is the integral component of a grid-connected solar system which shows the net consumption of power in the house. It indicates the difference between what is exported and imported from the grid.

How Does Net Meter Works?

• They measure the rate of production in watts
• It has 3 displays: 1^st test screen, 2^nd Power taken from the grid and 3^rd power injected into the grid
• Customers only billed for their NET energy use.
• Only 20-30% of the energy produced by a Solar System, goes into the grid
• Net metering policies and rates vary by state

Features

• Class 1 accuracy as per IS and IEC standards
• Indication for power on, current reversal and ELT
• Reset backups
• High surge withstand capability
• Load Survey (Interval Data)
• Anti-tamper features
• Optical port / RS 232 port/ Low Power Radio (optional)

Specifications

Connection	1 Phase 2 Wire
Standards Applicable	IS 13779, CBIP 325, IEC 62052-11, IEC 62053-21
Accuracy Class	CI 1.0
Rated Voltage	230V / 240V (P-N)
Voltage Variation	-40% to +20%
Current Rating	5-20A
Frequency	50Hz
Ingress Protection	IP 51

Display

LCD	6 digit backlit display
Display mode	Auto-scroll, push-button and high-resolution modes
LED	Pulse LED for kWh
